BELDEN 876950060 Signal Cable
This multi-conductor cable is designed for transmitting signals in various electronic and communication applications. It features 22 AWG stranded (7x30) TC conductors with polypropylene insulation, individually shielded twisted pairs with Beldfoil®, and an overall PVC jacket. The cable is UL-rated for 80°C and compliant with multiple environmental standards such as RoHS II, CE, and WEEE. It offers reliable performance with a maximum operating voltage of 30V RMS, a total weight of 233 lbs per 1000 ft, and a minimum bend radius of 6.250 inches, ensuring durability and flexibility in demanding installations.
BELDEN 876950060 Signal Cable Specifications:
- AWG: 22
- Number of Conductors: 7x30 stranded TC
- Insulation Material: Polypropylene
- Inner Shield: Beldfoil® (Z-Fold®) Aluminum Foil-Polyester Tape
- Inner Shield Drain Wire AWG: Stranded
- Outer Jacket Material: PVC
- Overall Diameter: 0.601 inches
- Operating Temperature Range: -20°C to +80°C
- UL Temperature Rating: 80°C
- Bulk Cable Weight: 233 lbs/1000 ft
- Max. Recommended Pulling Tension: 443 lbs
- Min. Bend Radius: 6.250 inches
- Applicable Standards: UL (cM), RoHS II, CE, WEEE, ELV, Prop 65
- Flame Test: UL1685 UL Loading
- Plenum: No
- Nominal Capacitance Conductor to Conductor & to Shield: Data not specified
- Nominal Velocity of Propagation: Data not specified
- Max. Operating Voltage: 30V RMS
- Max. Conductor DC Resistance: 5 Ohm per 1000 ft
- Shield DC Resistance @20°C: 10.600 Ohm/1000 ft
- Bulk Packaging Options: 100 ft, 500 ft, 1000 ft, 5000 ft
- Part Number: 876950060

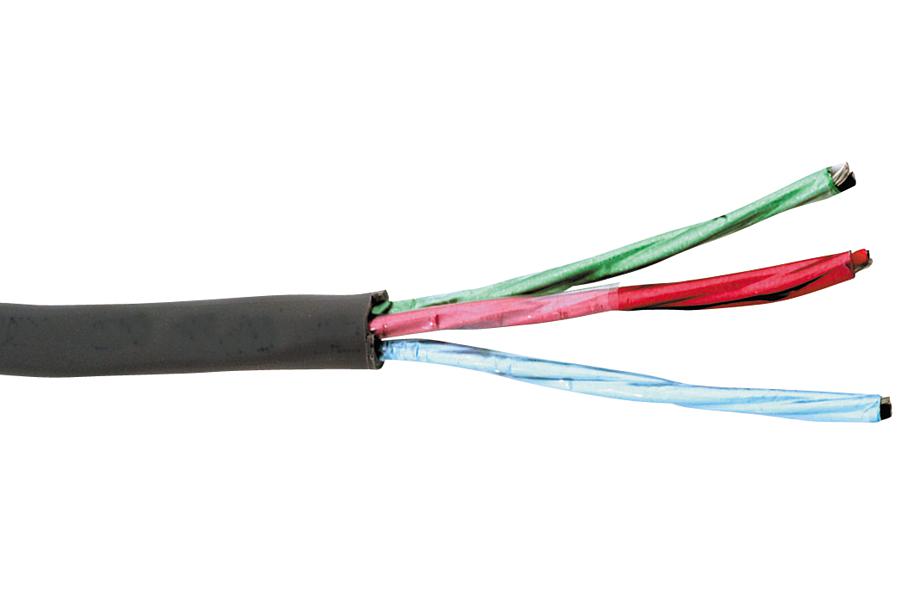

Buy the Buy Belden Signal Cable Part Number 876950060 Online
Purchase the Belden Series876950060 signal cable online today for dependable electronic signal transmission in demanding environments. This cable features 22 AWG stranded conductors with polypropylene insulation, individually shielded twisted pairs with Beldfoil®, and a durable PVC jacket. It is UL-rated for 80°C, compliant with RoHS II, CE, and WEEE standards, and offers maximum flexibility with a minimum bend radius of 6.250 inches. Ideal for professional installations, it ensures robust performance and long-lasting reliability for all your electronic projects.
Order your Belden Series876950060 signal cable today and ensure reliable signal transmission with robust shielding and high-quality materials.
Frequently Asked Questions
Where can I buy BELDEN 876950060?
You can click on the BUY or RFQ button to purchase 876950060 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 876950060?
You can download the 876950060 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 876950060?
BELDEN
