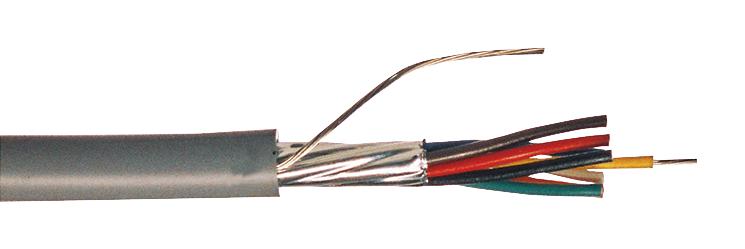

BELDEN 9538060U1000 Industrial Computer Cable
This 8-core computer cable is designed for EIA RS-232 connections, featuring stranded tinned copper conductors, semi-rigid PVC insulation, and a 100% coverage Beldfoil® shield. With an overall diameter of 0.224 inches and a PVC jacket, it offers excellent durability and shielding for industrial and computer peripherals. Rated for temperatures from -30°C to +80°C, it withstands a maximum pulling tension of 195.721N. This UL-listed, RoHS compliant cable ensures reliable performance in indoor environments, meeting multiple standards including UL1685 FT4 Flame Test and eco-friendly directives for safe, high-quality wiring solutions.
BELDEN 9538060U1000 Industrial Computer Cable Specifications:
- Conductor: 24 AWG stranded (7x32) tinned copper
- Insulation Material: PVC
- Outer Shield: Beldfoil® Aluminum/Polyester Tape, 100% coverage
- Outer Shield Drain Wire: Tinned copper, AWG 24
- Outer Jacket Material: PVC
- Overall Diameter: 0.224 inches
- Operating Temperature Range: -30°C to +80°C
- UL Temperature Rating: 80°C
- Maximum Pulling Tension: 195.721N (44 lbs.)
- Flame Test: UL1685 FT4, CSA FT4
- Standards: UL Style 2464 (300 V, 80°C), RoHS compliant
- Applicable Standards & Regulations: NEC, UL, CE, RoHS, WEEE, ELV
- Suitable for Indoor use, not plenum
- Bulk Cable Weight: 31 lbs/1000 ft
Buy the Belden 9538U1000 – Reliable Computer Cable for Industrial Applications
Buy your Belden 9538U1000 computer cable online today and enjoy reliable, high-quality wiring for EIA RS-232 applications. This 8-core shielded cable with tinned copper conductors offers excellent durability, shielding, and temperature resistance, making it ideal for industrial and computer peripheral setups. Its UL and RoHS compliance ensure safety and environmental standards are met. With a maximum pulling tension of 195.721N and temperature range from -30°C to +80°C, this cable guarantees secure, long-lasting connections for critical data transfer tasks in demanding environments. Order now for fast, convenient delivery and superior performance.
Order your Belden Series9538U1000 computer cable today and ensure dependable, high-performance connections for your industrial or computer peripherals.
Frequently Asked Questions
Where can I buy BELDEN 9538060U1000?
You can click on the BUY or RFQ button to purchase 9538060U1000 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9538060U1000?
You can download the 9538060U1000 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9538060U1000?
BELDEN
