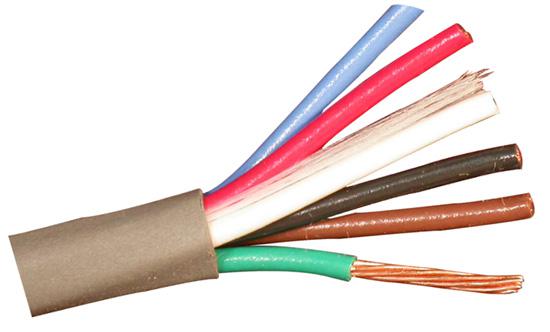

BELDEN 9613060100 Computer Data Cable
The 9613 computer cable is a multi-conductor, high-quality cable designed for EIA RS-232 communication applications. It features 24 AWG stranded tinned copper conductors with semi-rigid PVC insulation and a durable PVC jacket. The cable includes a Beldfoil shield with 100% coverage and a TC braid shield with 65% coverage to ensure optimal noise rejection and signal integrity. Suitable for industrial and communication environments, it supports UL UL 2464 standards, RoHS, and WEEE compliance, with a temperature range of 20°C to +80°C, and a diameter of 0.240 inches for reliable data transmission.
BELDEN 9613060100 Computer Data Cable Specifications:
- Conductor: 24 AWG stranded (7x32) tinned copper
- Insulation: S-R PVC
- Outer Shield: Beldfoil® (100% coverage), TC braid shield (65% coverage)
- Outer Jacket: PVC
- Overall Diameter: 0.240 in.
- Temperature Range: 20°C to +80°C
- UL Temperature Rating: 80°C
- Bulk Cable Weight: 36 lbs/1000 ft
- Applicable Standards: UL Style 2464, RoHS, WEEE, BFR
- Max Operating Voltage: 300 V
- Maximum Current per conductor: 1.5 Amps
- Flame Test: UL1685 FTA, CSA FT4
- Plenum: No
Buy the Belden 9613 – Reliable Data Cable for Industrial Applications
Purchase Belden 9613 computer data cable online for high-performance, shielded EIA RS-232 communication connections. Designed with 24 AWG tinned copper conductors, PVC insulation, and durable shield layers, it ensures noise immunity and signal integrity even in demanding industrial environments. This UL 2464 style cable supports RoHS and WEEE compliance, operates within -20°C to +80°C temperature range, and is available in various lengths with easy ordering options. Trust Belden for quality, safety, and reliable data transmission.
Get Belden 9613 today—built with shielding and durable insulation for reliable industrial communication and data transmission.
Frequently Asked Questions
Where can I buy BELDEN 9613060100?
You can click on the BUY or RFQ button to purchase 9613060100 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part 9613060100?
You can download the 9613060100 datasheet or visit the BELDEN website for support.
Who is the manufacturer of 9613060100?
BELDEN
