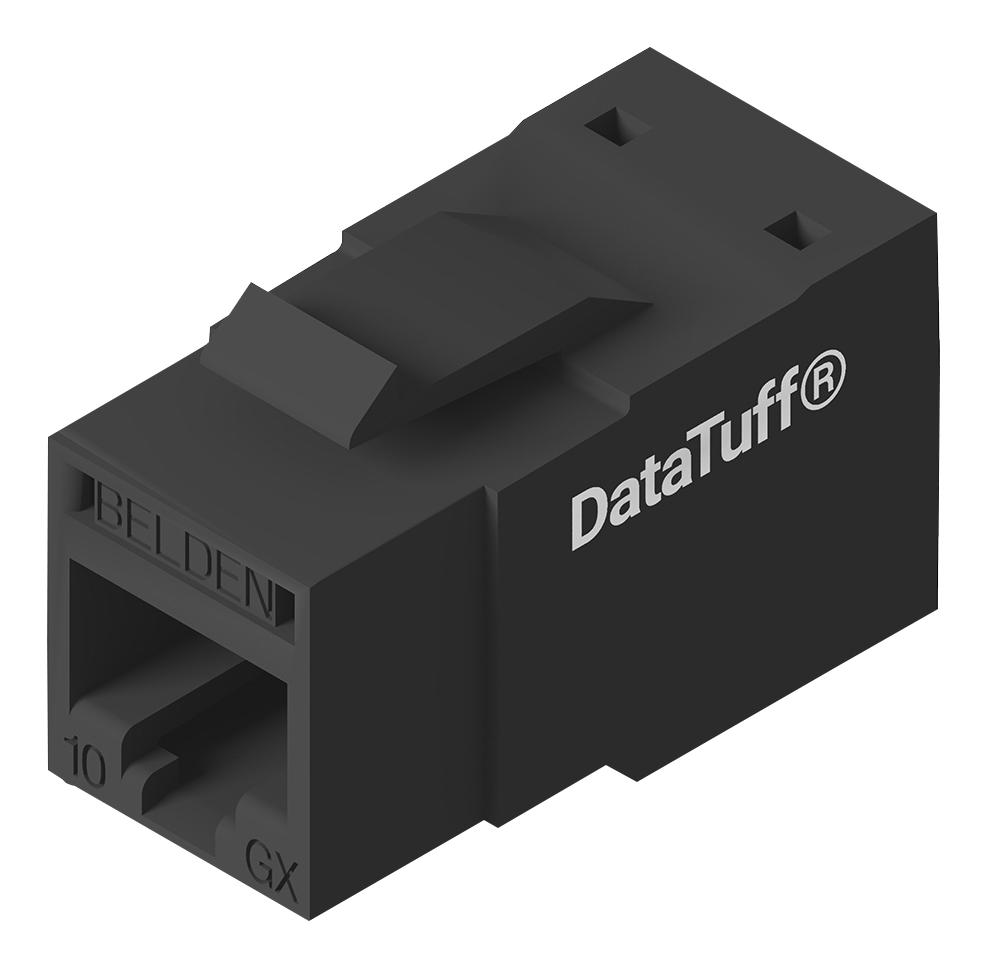

BELDEN RVAIJ2UBKB24 High-Speed Network Jack
The industrial REVConnect 10GX UTP Modular Jack is designed for high-performance network applications, supporting T568A/B wiring schemes and compliant with IEEE 802.3at standard for Power over Ethernet up to 100W. Made with durable copper alloy contacts gold-plated over nickel, and housed in a UL94V-0 rated PBT body for indoor use. It features simple installation with REVConnect tools, robust retention force, and meets UL, RoHS, and telecommunications standards for reliable, professional-grade connectivity in demanding industrial environments.
BELDEN RVAIJ2UBKB24 High-Speed Network Jack Specifications:
- Dimensions: Length varies, typical tail length approximately 4.0 mm
- Material: Copper alloy contacts, gold plated over nickel, PBT UL94V-0 housing
- Wiring Scheme: T568A/B
- Weight: 0.016 lbs. (per unit)
- Temperature Range: -40°C to +70°C (storage, installation, operating)
- Cable/Connector Retention: 15 lbs.
- Connector/Hardware Retention: 20 lbs.
- Plug/Connector Retention: 11.250 lbs.
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 min
- Current Rating: 1.3A
- Insulation Resistance: 500 M-Ohm minimum
- Max Contact Resistance: 20 m-Ohm
- Termination Resistance: 2.5 m-Ohm
- UL and IEC Standards: UL 94V-0, IEC 60603-7
- Environmental compliance: RoHS compliant
- Standards: TIA 568.2, ISO/IEC 11801, IEEE 802.3at, FCC part 68
Buy the Belden Series 10GX UTP Modular Jack: RVAIJ2UB24
Upgrade your network with the Belden High-Speed Network Jack designed for 10GBASE-T applications. This rugged modular jack supports T568A/B wiring schemes, ensures reliable connections, and complies with IEEE standards for Power Over Ethernet. Its durable construction with copper alloy contacts and UL94V-0 rated PBT housing guarantees longevity and safety in demanding indoor environments. Easy to install using REVConnect tools, this product enhances your network infrastructure's performance and reliability. Purchase online today for seamless connectivity and professional-grade performance.
Buy Belden RVAIJ2UB24 now and experience unmatched reliability and performance in high-speed network connectivity.
Frequently Asked Questions
Where can I buy BELDEN RVAIJ2UBKB24?
You can click on the BUY or RFQ button to purchase RVAIJ2UBKB24 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part RVAIJ2UBKB24?
You can download the RVAIJ2UBKB24 datasheet or visit the BELDEN website for support.
Who is the manufacturer of RVAIJ2UBKB24?
BELDEN
