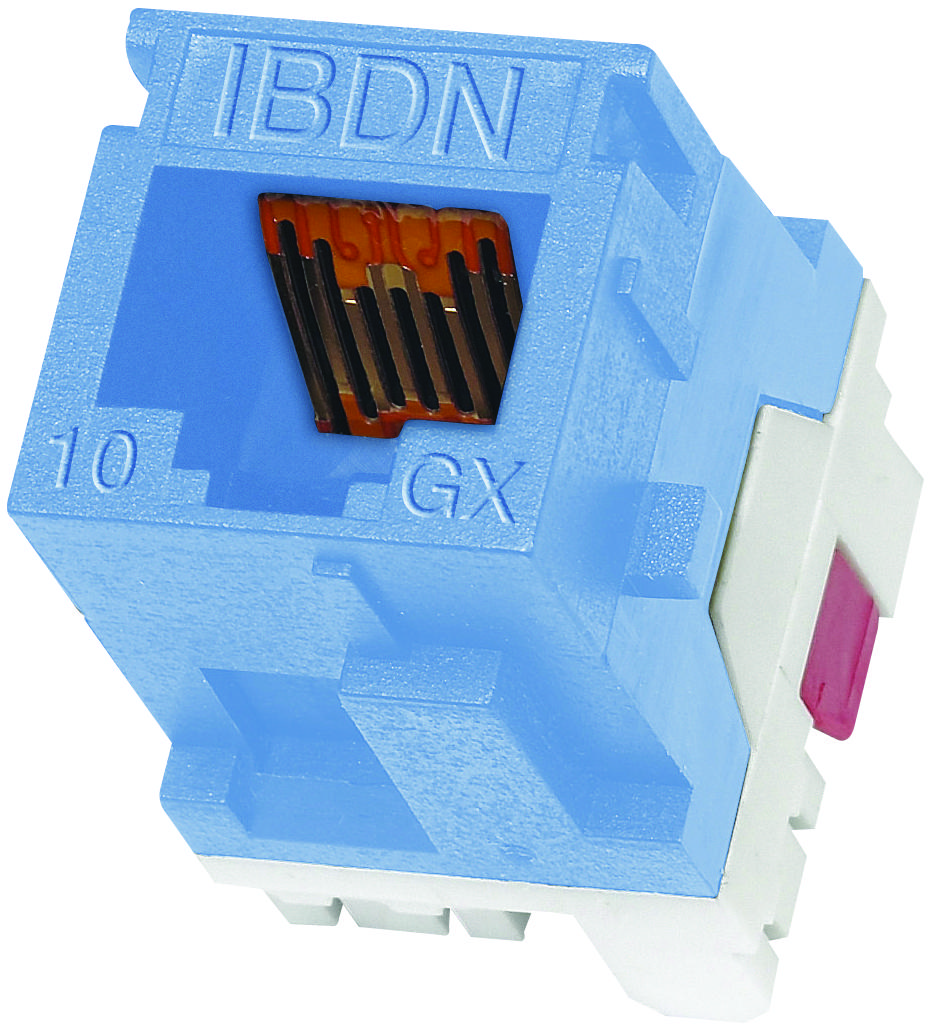

BELDEN AX102272 High-Speed Ethernet Modular Jack
The 10GX Modular Jack in MDVO style is designed for high-speed Category 6A Ethernet applications, supporting TIA 568.8,2-10, ISO Class E, and 10GBASE-T standards. Compatible with interface and MDVO style faceplates, adapters, boxes, and patch panels, it features a black plastic body, flexible PCB front connection with gold over nickel plating, and phosphor bronze rear contacts. Suitable for indoor use, this module ensures reliable performance with insulation resistance of 50 M-Ohm, dielectric strength of 1,000 V RMS, and a current rating of 4.5 A. Packaged individually with a dust cap, it meets RoHS and telecommunications standards, verified for Category 6A performance.
BELDEN AX102272 High-Speed Ethernet Modular Jack Specifications:
- Dimensions: Not specified
- Material: Front connection with flexible PCB, gold over nickel; rear contacts phosphor bronze with tin plating
- Color: Black
- Wiring Scheme: TS68NB
- Weight: 0.016 lbs
- Dielectric Strength: 1,000 V RMS @ 60 Hz for 1 min
- Current Rating: 4.5 A
- Insulation Resistance: 50 M-Ohm minimum
- Max Contact Resistance: 20 mOhm
- Termination Resistance: 2.5 mOhm
- Compatibility: TIA 568.8,2-10, ISO Class E, 10GBASE-T
- Standards: IEC 60603-7, RoHS, UL Part 68, ETL verified category 6A
- Environmental: Suitable for indoor use
- Packaging: Individually packed in a plastic bag, minimum order of 50 units
Buy the Belden Series 10GX Modular Jack: AX102272
Purchase the Belden 10GX Modular Jack online and enjoy reliable high-speed connectivity for your networking needs. Designed for Category 6A applications, it ensures excellent performance with gold-plated contacts, flexible PCB construction, and compatibility with MDVO-style faceplates and patch panels. This indoor module supports demanding 10GBASE-T standards, meeting IEC, RoHS, and telecommunications standards verified for Category 6A performance. Easy to install and individually packaged, it’s perfect for professional installation in data centers or network setups seeking durable, high-speed connections.
Get Belden AX102272 today—built for high-speed Ethernet and long-lasting durability.
Frequently Asked Questions
Where can I buy BELDEN AX102272?
You can click on the BUY or RFQ button to purchase AX102272 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part AX102272?
You can download the AX102272 datasheet or visit the BELDEN website for support.
Who is the manufacturer of AX102272?
BELDEN
