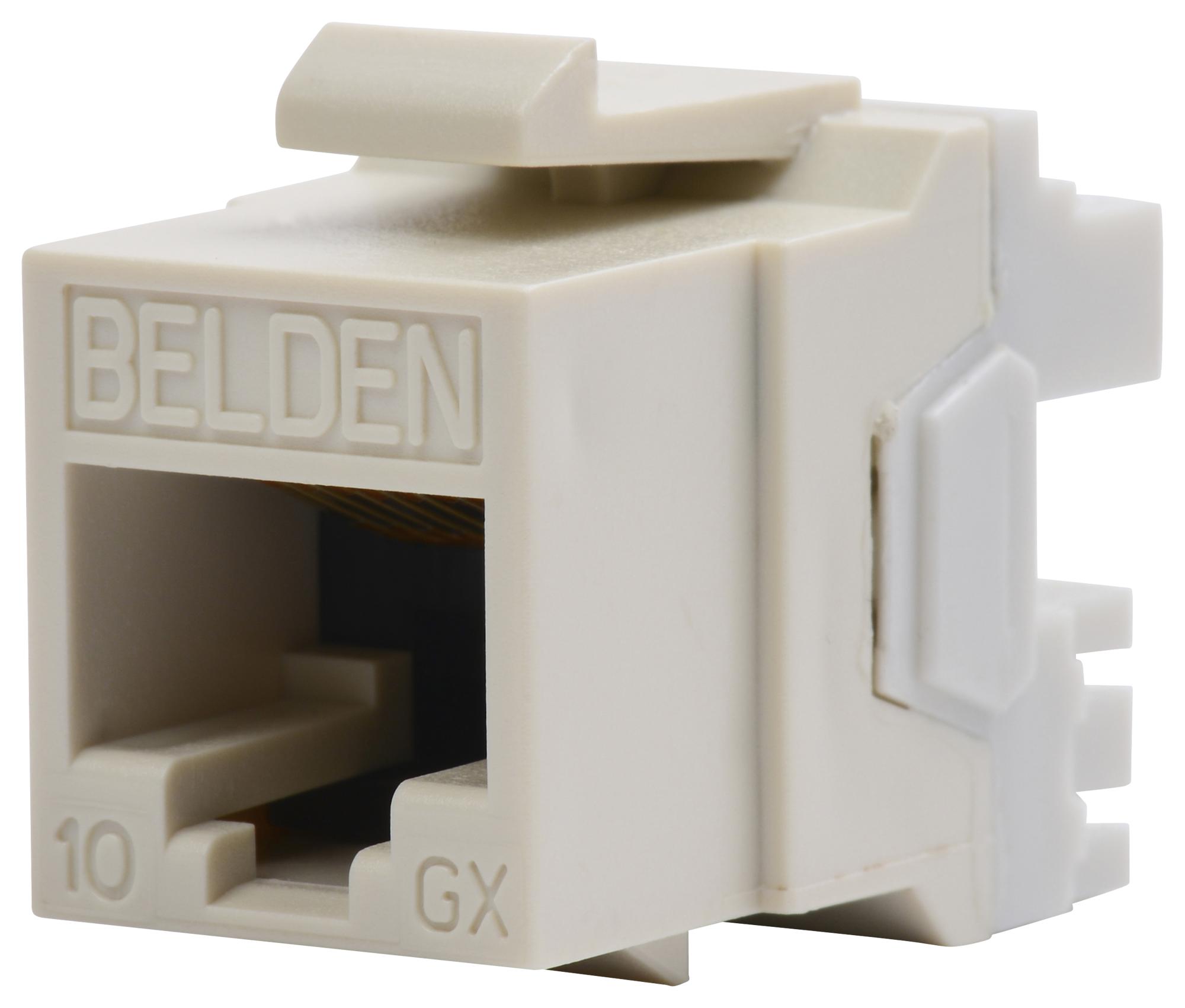

BELDEN AX102282 Network Jack
The 10GX Modular Jack is a Category 6A RJ45 connector designed for indoor applications, supporting ISO Class EA and 10GBASE-T standards. It features a durable design with a flexible PCB front connection with gold over nickel plating and a phosphor bronze rear IDC connection with tin plating. The jack ensures reliable connectivity with a maximum contact resistance of 20mOhm, dielectric strength of 1,000V RMS, and withstands at least 750 connection cycles. Suitable for high-speed data networking, it is compatible with Belden 110 connecting tools and complies with various telecommunications standards.
BELDEN AX102282 Network Jack Specifications:
- Dimensions: Height 0.9m, Width 0.675m, Depth 1.7m
- Material: Flexible PCB with gold over nickel plating (front), Phosphor bronze with tin plating (rear), Plastic body
- Electrical Characteristics: Dielectric Strength 1,000V RMS, Max Contact Resistance 20mOhm, Insulation Resistance 500 M-Ohm, Current Rating 1.500A
- Temperature Range: Installation -10°C to +60°C, Storage -40°C to +70°C, Operating -10°C to 460°C
- Connectors: Front Flex PCB, Rear IDC, Compatible with Belden tools
- Standards: ISO/IEC 11801:2002 Am 2, FCC Part 68, IEC 60603-7, UL Listed
- Durability: 750 connection cycles, 20 terminations, Hardware and plug retention rated at 20 lbs and 11.25 lbs respectively
- Environmental: RoHS compliant, suitable for indoor environments
Buy the Belden Series 10GX Network Jack: AX102282
Purchase your Belden Series 10GX network jack online now and ensure your high-speed data connections are secure and reliable. This Category 6A RJ45 modular jack features durable gold-plated contacts, easy front and rear termination, and industry-standard compliance, making it perfect for indoor network installations. With a robust design supporting 750 connection cycles and meeting all relevant standards, it guarantees performance and longevity. Get your reliable Ethernet connection today and enhance your network infrastructure effortlessly.
Order your Belden Series 10GX network jack today and enjoy reliable, high-speed connectivity ideal for professional indoor networking projects.
