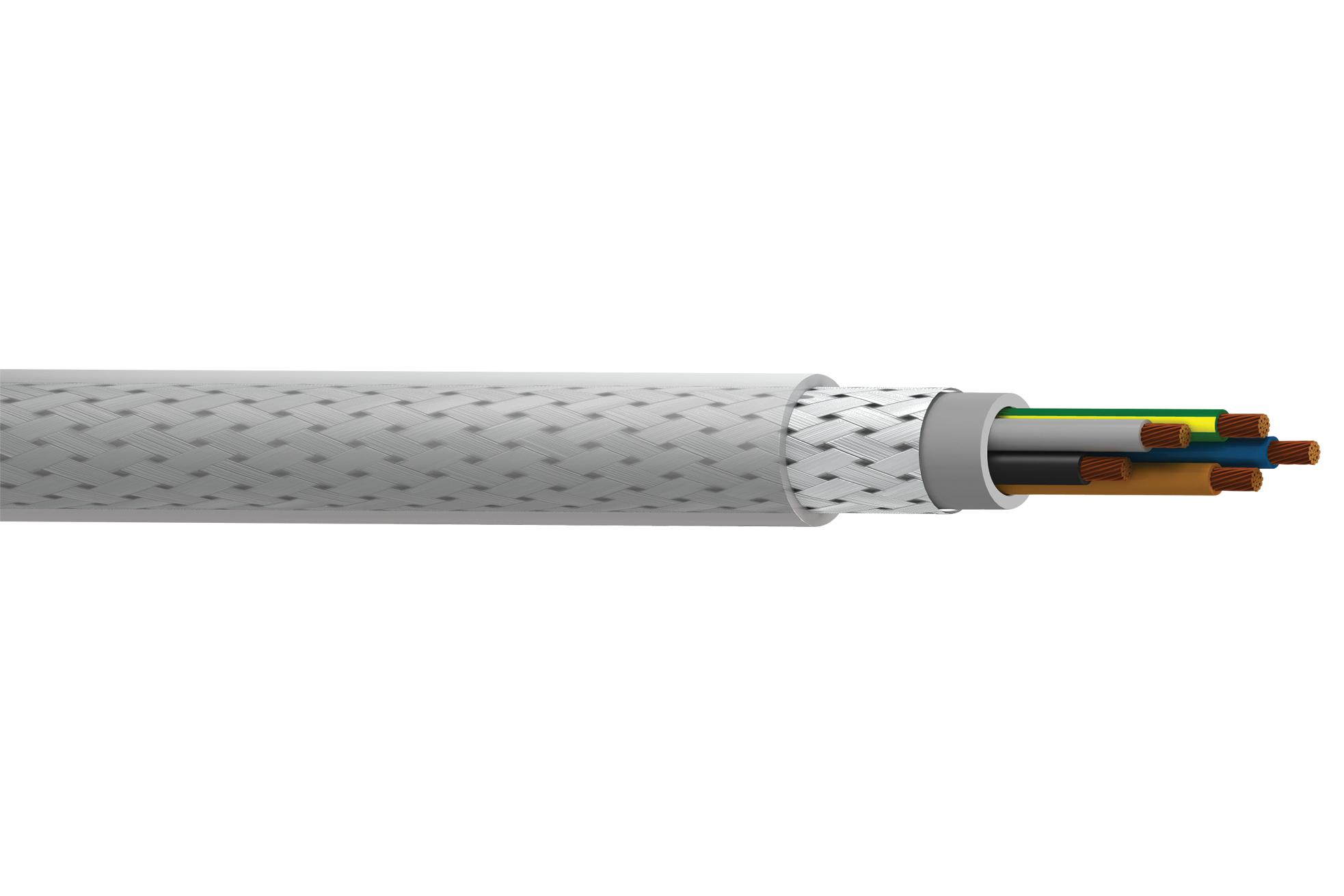

Belden C4GCCYK500 Control Cable
The C4GCCYK500 is a shielded PVC control cable designed for industrial automation and control applications. It features stranded bare copper conductors, tinned copper braid shields for excellent noise immunity, and a durable PVC jacket. Suitable for occasional flexing and fixed installations, it complies with international standards including IEC 60228 and VDE 0482-332. Its robust construction ensures good UV, chemical, and oil resistance, with temperature ranges from -40°C to +80°C. Ideal for sensors, control panels, and machinery wiring, it offers reliable signal transmission in demanding environments.
Belden C4GCCYK500 Control Cable Specifications:
- Conductor Material: Stranded bare copper
- Shield Material: Tinned copper braid
- Insulation Material: PVC (polyvinyl chloride)
- Jacket Material: PVC
- Flame Retardancy: VDE 0482-332-1-2, IEC 60332-1-2
- Voltage Rating: Up to 1.5 mm?: 300 / 500 V; From 2.5 mm?: 450 / 750 V
- Temperature Range: -5°C to +70°C (occasional movement), -40°C to +80°C (fixed installation)
- Bending Radius: 20 x OD (occasional movement), 6 x OD (fixed installation)
- Physical Dimensions: Diameter varies from 6.9 mm to 30.1 mm based on core count and wire gauge
- Application: Suitable for control sensors, machinery, control panels, and motor speed control in industrial environments
- Standards: IEC 60228, BS 6360, DIN VDE 0295, DIN EN 50290-2-22
- Compliance: RoHS, REACH, CE directives
- Environmental Resistance: Good UV, chemical, and oil resistance
- Cable Lengths: Available in 100M, 200M, 300M options depending on code
Buy the Belden Series MachFlex Shielded PVC Control Cable: C4GCCYK500
Discover the reliability of the Belden Series MachFlex control cable, designed for industrial automation and control systems. With its durable PVC sheath, copper braid shield for excellent noise immunity, and compliance with international standards, it provides optimal performance in fixed and flexing installations. Suitable for sensors, control panels, and machinery, this cable ensures consistent, high-quality signal transmission even in harsh environments. Order your C4GCCYK500 control cable online today and experience dependable connectivity for your industrial projects.
Order your Belden Series MachFlex C4GCCYK500 shielded control cable today and ensure reliable signal transmission in demanding industrial environments.
