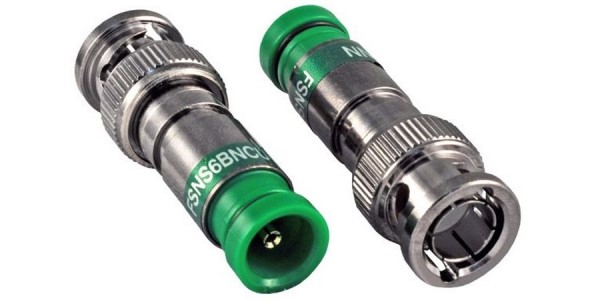

BELDEN FSNS6BNCU25 BNC Coax Connector
The Belden FSNS6BNCU-25 ProSNS RG6 Universal BNC compression connector offers a reliable and easy-to-use connection solution for RG6 coaxial cables. Featuring a non-blind entry and split ferrule design, it ensures fast, secure terminations with minimal tool pressure thanks to its polymer compression sleeve. Suitable for indoor and outdoor use, especially in CCTV, security cameras, and video systems, this BNC connector provides excellent impedance matching at 75 Ohms and high return loss performance up to 1 GHz. Its durable construction supports both residential and commercial installations with robust mechanical and electrical properties.
BELDEN FSNS6BNCU25 BNC Coax Connector Specifications:
- Impedance: 75 Ohms
- Temperature Range: -40°F (-40°C) to 140°F (60°C)
- Conductor Size: 18 AWG
- Cable Diameter Limits: Dielectric 0.180 - 0.193 inch, Outer Jacket 0.265 - 0.305 inch
- Insertion Force: 20 lb
- Color Band: Green
- Connector Interface: BNC male plug
- Termination Type: Compression
- Environmental: Indoor and Outdoor suitable, Not plenum rated
- Packaging: 25 pack
- Applicable Standards: RG 6IU Type
- Locking: No
- Compatible with compression tools: CPLOCT-SLMR, CPSNSCT. 56, PSASOIG
Buy the Buy Belden RG6 Universal BNC Part Number FSNS6BNCU25 Online
Purchase the Belden FSNS6BNCU-25 BNC compression connector online today—engineered for fast, secure cable termination in CCTV, security, and video applications. Featuring split ferrule and polymer compression sleeve, it allows easy cable insertion with minimal tool pressure, ensuring dependable connections for both indoor and outdoor environments. Its durable design guarantees long-lasting performance while supporting standard RG6 cables with 75 Ohms impedance. Perfect for professional installations requiring excellent electrical properties and easy handling, order now to enhance your video and security system setup.
Get Belden FSNS6BNCU-25 today—designed for secure and reliable coax connections in video and security installations.
Frequently Asked Questions
Where can I buy BELDEN FSNS6BNCU25?
You can click on the BUY or RFQ button to purchase FSNS6BNCU25 from an authorized BELDEN distributor.
How do I troubleshoot issues or seek technical support for part FSNS6BNCU25?
You can download the FSNS6BNCU25 datasheet or visit the BELDEN website for support.
Who is the manufacturer of FSNS6BNCU25?
BELDEN
