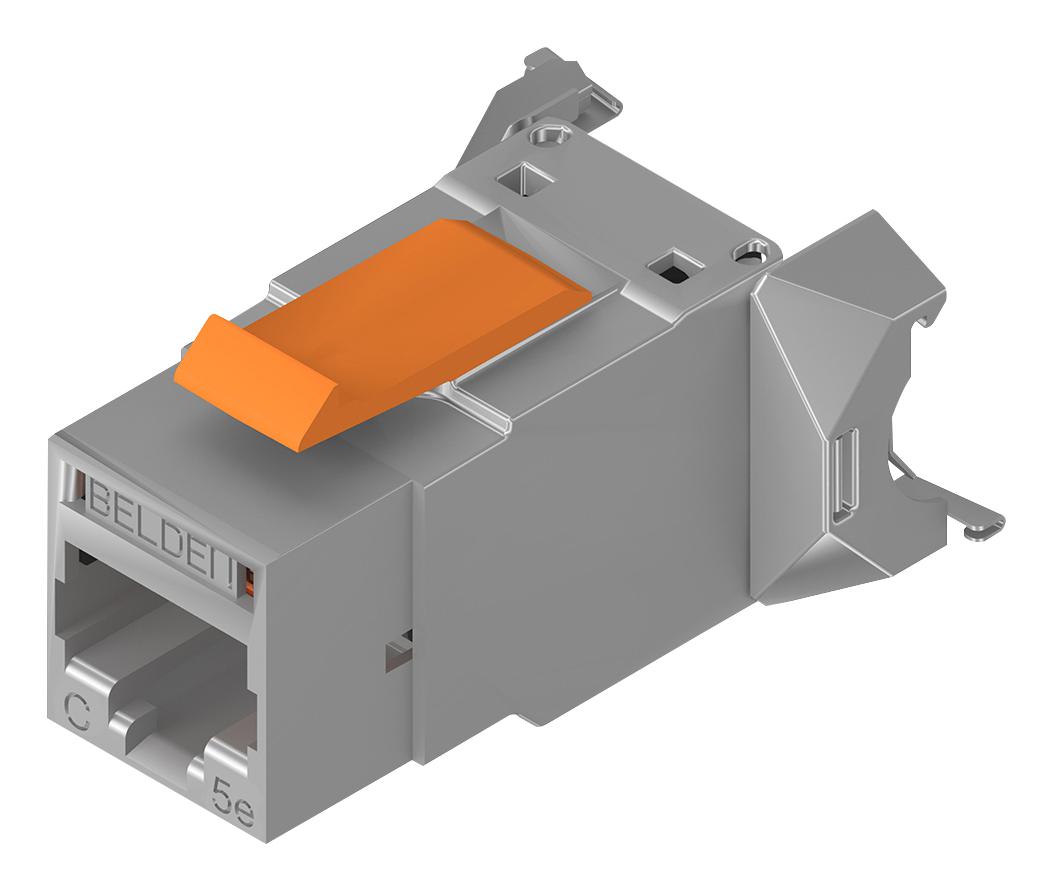

BELDEN RV5IJ2SMES1 Shielded Network Jack
The industrial REVConnect CAT5E shielded modular jack is designed for high-performance network installations, supporting T568A/B wiring schemes, and suitable for shielded systems. Made from durable materials, it features copper-clad flexible PCB contacts with gold plating over nickel, enclosed in a zinc alloy diecast body. This jack offers reliable connectivity with a retention force of 15 lbs. for cables and 20 lbs. for hardware, compliant with UL and IEEE standards. It withstands temperatures from -40°C to +70°C and supports Power over Ethernet up to 100W, making it ideal for industrial and enterprise networks.
BELDEN RV5IJ2SMES1 Shielded Network Jack Specifications:
- Materials: Copper clad flexible PCB contacts with gold plating over nickel, zinc alloy diecast body
- Dimensions: Not specified
- Temperature Range: -40°C to +70°C
- Retention Force: Cable 15 lbs, hardware 20 lbs
- Standards & Compliance: UL954V-0, IEEE 802.3at/af, RoHS compliant
- Electrical: Dielectric strength 1,000 V RMS @ 60 Hz, Max contact resistance 20 m-Ohm
- Current Rating: 1.3A
- Insulation Resistance: 500 M-Ohms minimum
- Connection Type: RJ45, RJ11 compatibility, REVConnect termination
- Packaging: Individually packaged in a plastic bag
- Operating Conditions: -40°C to +70°C
- Flame Test: UL 94V-0
- Transmission: Supports CAT5E performance, compliant with TIA/EIA-568-C.2 standards
- Power Over Ethernet: IEEE 802.3at/af, up to 100W
- Applicable Standards: UL, IEC 60603-7, FCC part 68
- Environmental: Indoor use, UL2043 air handling spaces
Buy the Buy Belden RVS5IJ2SME-S1 Modular Connectors Industrial REVConnect Jack CAT5E Shield Online
Purchase the Belden RVS5IJ2SME-S1 shielded CAT5E modular jack online today and upgrade your networking setup with high-quality, durable components. This shielded RJ45 jack supports T568A/B wiring, offers excellent resistance to temperature extremes, and is UL listed for safety. Its robust construction and compliance with industry standards make it ideal for industrial and enterprise applications. Enjoy fast, secure, and reliable network connections with this easy-to-install modular plug. Shop now to enhance your network infrastructure with trusted, high-performance equipment.
Order your Belden RVS5IJ2SME-S1 series industrial REVConnect Jack today and ensure reliable shielded network connections with high performance and easy installation.
