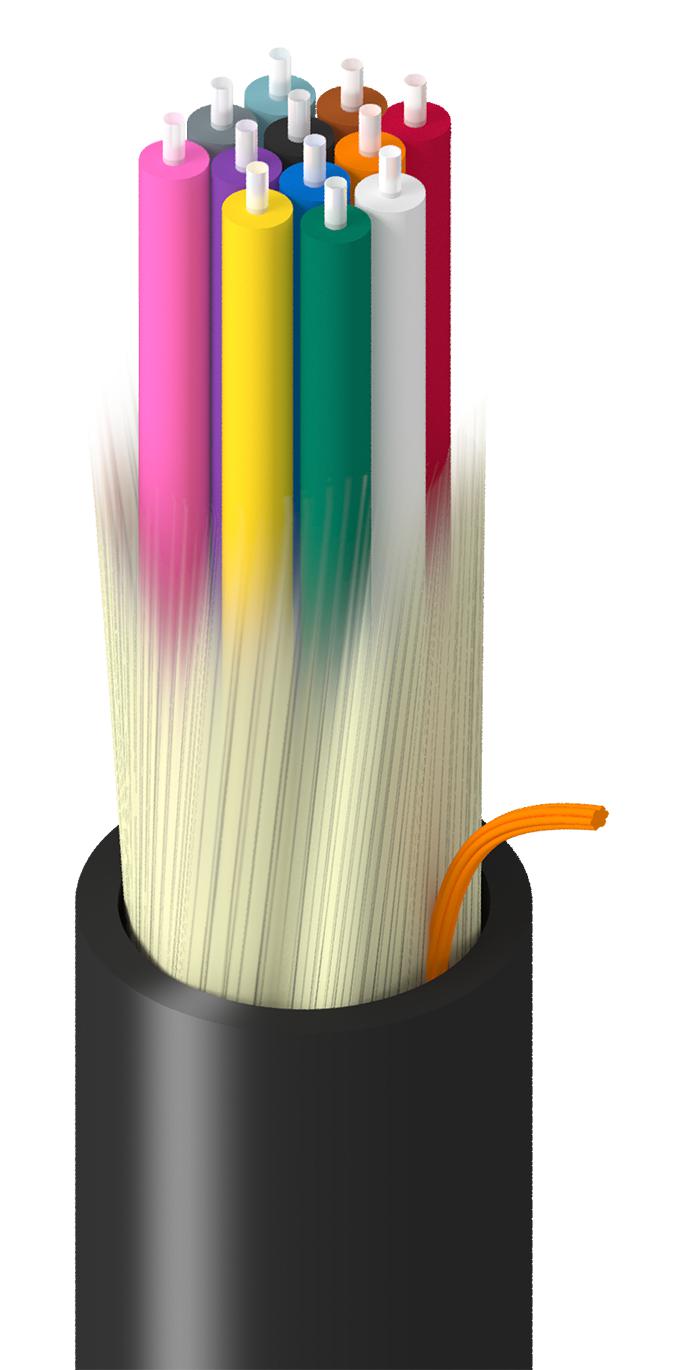

BELDEN TFSD9012RN5N Fiber Distribution Cable
The fiber distribution cable is designed for both indoor and outdoor applications, featuring 12 OS2 fibers with a core diameter of 82 um. It has a durable PVC jacket resistant to ozone, UV, and oil, suitable for extended-distance horizontal and backbone networks. The cable’s outer diameter is 0.260 inches, with a tensile strength of up to 300 lbs during installation and 90 lbs during operation. Its flexible design supports wet, noisy, and harsh environments, ensuring reliable data transmission in diverse industrial and telecommunications settings.
BELDEN TFSD9012RN5N Fiber Distribution Cable Specifications:
- Fiber Type: OS2
- Fiber Core Diameter: 82 um
- Fiber Diameter: 250 um
- Strength Member: Waterblocking Aramid Yams
- Jacket Material: PVC - Polyvinyl Chloride
- Jacket Nominal Diameter: 0.260 inches (6.6 mm)
- Number of Fibers: 12
- Fiber Color Coding: TIA598-D
- Outer Jacket Resistance: Ozone, UV, Oil
- Min. Bend Radius During Installation: 15x Cable OD
- Min. Bend Radius During Operation: 10x Cable OD
- Max. Tensile Strength During Installation: 1335 N (300 lbs)
- Max. Tensile Strength During Operation: 400 N (90 lbs)
- Crush Resistance: 220 N/mm²
- Cable Weight: 27 lbs/1000 ft (40 kg/km)
- Operating Temperature Range: -40°C to +70°C
- Installation Temp Range: 10°C to +60°C
Buy the BELDEN TF-SD9-012-RN5 – Reliable Fiber Distribution Cable for Industrial Applications
Upgrade your network with the BELDEN fiber distribution cable, ideal for both indoor and outdoor environments. Featuring 12 OS2 fibers with high-performance PVC jacket resistant to ozone, UV, and oil, it’s perfect for extended distance, backbone, and noisy industrial settings. Durable and flexible, it supports wet locations and harsh conditions. With easy installation and robust strength, this cable guarantees reliable, high-speed data connectivity for demanding telecommunications and data networks. Purchase online today for seamless project integration.
Order your BELDEN Series TF-SD9-012-RN5 fiber distribution cable today and ensure dependable data transmission in challenging environments.
