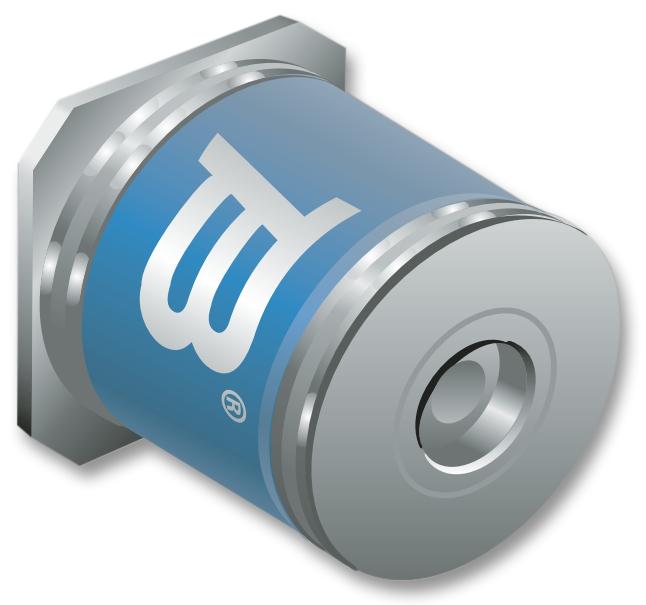

Bourns 203509SMLF Precision Surge Protector
Bourns offers the 2035-xx-SM series as a surface mount (SM) 2-electrode GDT surge protection device. These devices combine industry-leading quality with features like a compact mini-size, high surge current rating, low capacitance, and stable breakdown. They are compatible with pick and place assembly systems and are ideal for high-density applications such as PCBs for telecommunications, commercial, and industrial applications. The 2035-09-SMLF model offers reliable surge protection in a small form factor and is designed for ease of integration into modern electronic designs.
Bourns 203509SMLF Precision Surge Protector Specifications:
- DC Sparkover ±15 % @ 100 V/s: 90 V
- Impulse Sparkover (1) 100 V/μs 1000 V/μs: 350 V 525 V
- Insulation Resistance (IR) 100 V: >1010Ω
- Glow Voltage: ~70 V
- Arc Voltage: ~10 V
- Glow-Arc Transition Current: <0.5 A
- Capacitance 1 MHz: <1 pF
- DC Holdover Voltage (2): <150 ms
- Impulse Discharge Current 10000 A, 8/20 μs: operation minimum
- Alternating Discharge Current 20 Arms, 11 cycles: 1 operation minimum
- Operating Temperature: -55 to +85 °C
- Climatic Category (IEC 60068-1): 40/90/21
- UL Recognized: UL File E153537
- Sparkover limits after life: ±20 % (-25 %, +30 % for Model 2035-09, 2035-60)
- IR: >10[8]
- AQL: 0.65 Level II, DIN ISO 2859
- Reflow: IPC/JEDEC J-STD-020 rev D
Buy the 2035-09-SMLF BOURNS Precision Surge Protector | myMectronic
Securely purchase the Bourns 2035-09-SMLF Precision Gas Discharge Tube Surge Protector online today.
