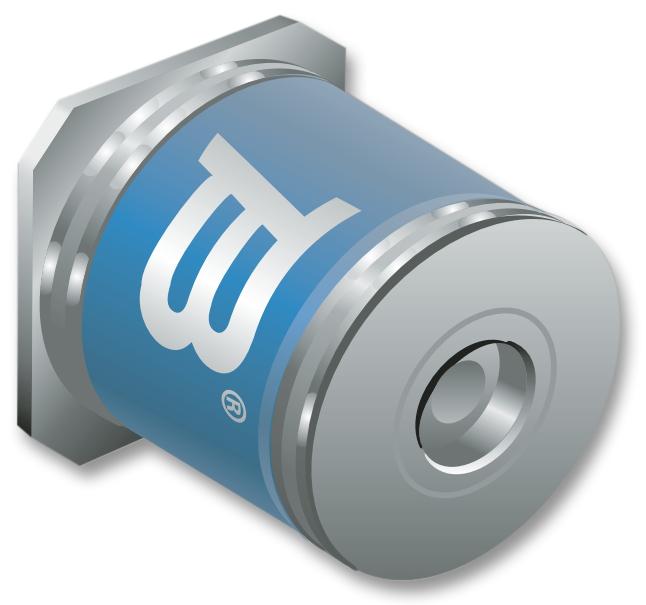

Bourns 203535SMRPLF Precision Gas Discharge Tube Surge Protector
The Bourns 2035-35-SM-RPLF is a surface mount gas discharge tube (GDT) surge protector designed for applications requiring robust protection against voltage surges. This device offers a compact form factor, making it ideal for high-density printed circuit boards (PCBs) commonly found in telecommunications equipment, commercial electronics, and industrial control systems. The 2035-35-SM-RPLF provides a high surge current rating and low capacitance, ensuring effective surge protection while minimizing signal disruption. It is compatible with automated 'pick and place' assembly systems, simplifying manufacturing processes. Bourns GDTs are known for their industry-leading quality and reliability, ensuring long-term performance and protection.
Bourns 203535SMRPLF Precision Gas Discharge Tube Surge Protector Specifications:
- DC Sparkover: 90 V (2035-09), 150 V (2035-15), 200 V (2035-20), 230 V (2035-23), 250 V (2035-25), 300V (2035-30), 350 V (2035-35), 400 V (2035-40), 420 V (2035-42), 470 V (2035-47), 600 V (2035-60)
- Impulse Sparkover: 350 V/525 V (2035-09), 400 V/550 V (2035-15), 425 V/575 V (2035-20), 450 V/600 V (2035-23), 475 V/625 V (2035-25), 525 V/650 V (2035-30), 600 V/750 V (2035-35), 650 V/800 V (2035-40), 675 V/850 V (2035-42), 750 V/950 V (2035-47), 950 V/1100 V (2035-60)
- Insulation Resistance: > 10[10] Ω (100 V), > 10[10] Ω (50 V for Model 2035-09)
- Glow Voltage: ~ 70 V
- Arc Voltage: ~ 10 V
- Glow-Arc Transition Current: < 0.5 A
- Capacitance: < 1 pF @ 1 MHz
- DC Holdover Voltage: < 150 ms
- Impulse Discharge Current: 10000 A, 8/20 μs (1 operation minimum), 5000 A, 8/20 μs (> 10 operations), 1000 A, 10/350 μs (1 operation), 100 A, 10/1000 μs (> 300 operations), 100 A, 10/700 μs (> 500 operations)
- Alternating Discharge Current: 20 Arms, 11 cycles (1 operation minimum), 5 Arms, 1 s (> 10 operations)
- Operating Temperature: -55 to +85 °C
- Climatic Category: 40/90/21
- Sparkover limits after life: ±20 % (-25 %, +30 % for Model 2035-09, 2035-60)
- ROHS Compliant: Yes
- Packaging Options: Bulk, Reelpack (RP, RP3, RP4)
