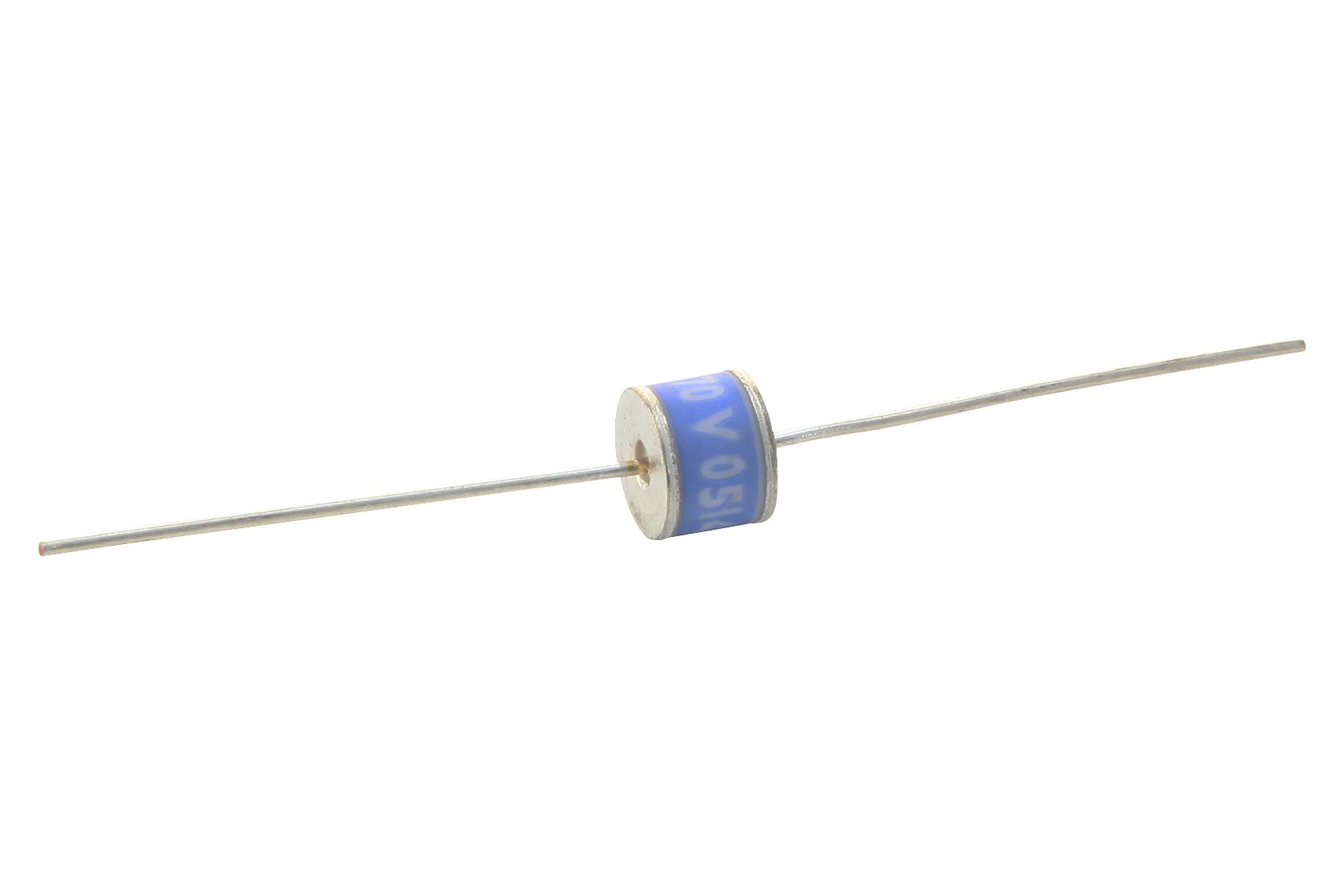

Bourns 203709BLF Miniature 2-Pole Gas Discharge Tube
The Bourns 2037-09-BLF series are miniature 2-pole gas discharge tubes (GDTs) providing robust surge protection for sensitive electronic circuits. These devices are characterized by their compact size, high surge current handling capability, and stable breakdown voltage. They find application in telecommunications equipment, industrial control systems, consumer electronics, and automotive electronics where protection against transient voltage surges is critical. The 2037-09-BLF model offers a DC sparkover voltage of 90V and is available in RoHS compliant versions. Users should verify actual device performance in their specific applications.
Bourns 203709BLF Miniature 2-Pole Gas Discharge Tube Specifications:
- DC Sparkover Voltage: 90 V
- Impulse Sparkover Voltage: 300 V @ 100 V/µs, 550 V @ 1000 V/µs
- Insulation Resistance: > 10[10] Ω
- Glow Voltage: ~ 70 V
- Arc Voltage: ~ 10 V
- Glow-Arc Transition Current: < 0.5 A
- Capacitance: < 1 pF @ 1 MHz
- DC Holdover Voltage: < 150 ms
- Impulse Discharge Current: 10000 A @ 8/20 µs
- Alternating Discharge Current: 20 Arms @ 11 cycles
- Operating Temperature: -55 to +85 °C
- Climatic Category: 40/90/21
- UL Recognized: Yes, UL File E153537
- Packaging: Bulk, Reelpack (T1)
