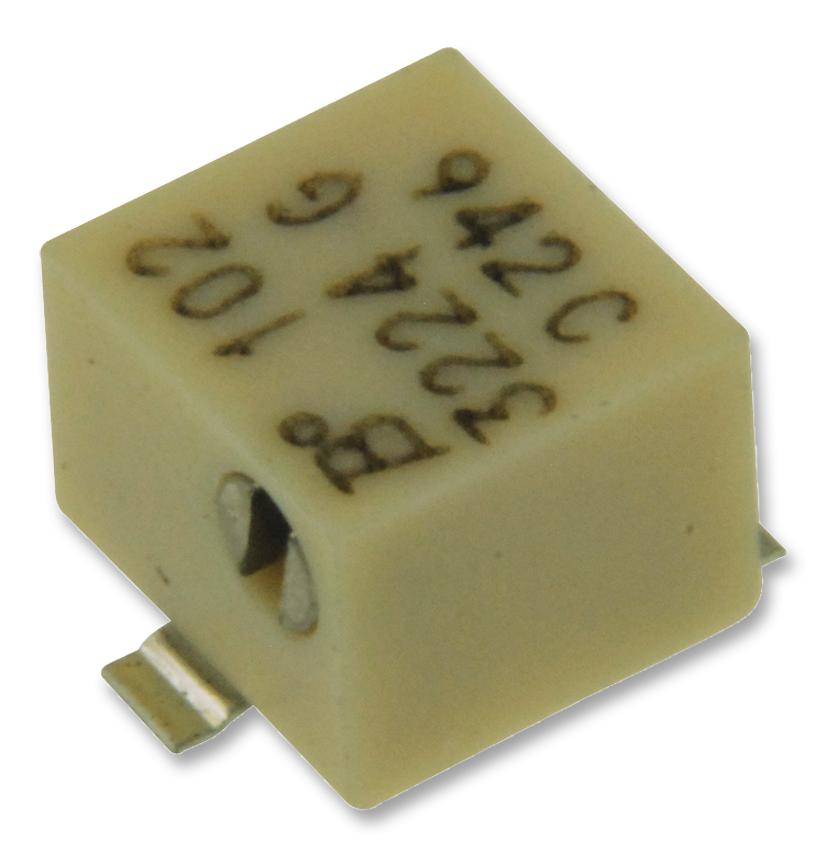

Bourns 3224G1102E Precision Trimmer
The 3224G1102E is a 4 mm surface-mount trimmer potentiometer designed for precise resistance adjustment in electronic circuits. Featuring a sealed, halogen-free construction with RoHS compliance, it withstands board washing and extreme temperatures up to +150°C. Its compact form factor includes side and top adjustment styles, suitable for automated assembly, with a resistance range from 1.10 ohms to 2 megaohms. Built with low Contact Resistance Variation and environmental durability, this trimmer is ideal for industrial and precision electronic applications requiring reliable, fine-tuning performance.
Bourns 3224G1102E Precision Trimmer Specifications:
- Resistance Range: 1.10 to 2 megaohms
- Resistance Tolerance: ± 8%
- Contact Resistance Variation: 1% or 3 ohms max.
- Power Rating: 0.5W at 85°C, 1W at 150°C
- Temperature Range: -55°C to +150°C
- Resistance Coefficient: -100 ppm/°C
- Adjustment: 12 turns nominal with adjustment slots for top or side
- Sealed to withstand board wash and harsh environments
- Physical Dimensions: 4 mm square footprint, various mounting styles including flush and surface-mount
- Compliance: RoHS, halogen free, meets EIA/EIAJ/IPC/VECI standards
Buy the Bourns Series 3224 Resistance: 3224G1102E
Discover the Bourns 3224G1102E precision trimmer potentiometer, a compact, sealed, and RoHS-compliant component designed for accurate resistance tuning in demanding environments. Its 4 mm surface-mount design simplifies assembly and ensures durability against board wash, extreme temperatures, and environmental factors. Suitable for industrial and high-precision applications, this device offers a resistance range from 1.10 ohms to 2 megaohms, with low contact resistance variation and reliable performance over time. Buy online now to secure this essential electronic adjustment component for your next project.
Order your Bourns Series 3224G1102E sealed trimmer potentiometer today and enhance your electronic projects with reliable precision adjustment.
Frequently Asked Questions
Where can I buy Bourns 3224G1102E?
You can click on the BUY or RFQ button to purchase 3224G1102E from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3224G1102E?
You can download the 3224G1102E datasheet or visit the Bourns website for support.
Who is the manufacturer of 3224G1102E?
Bourns
