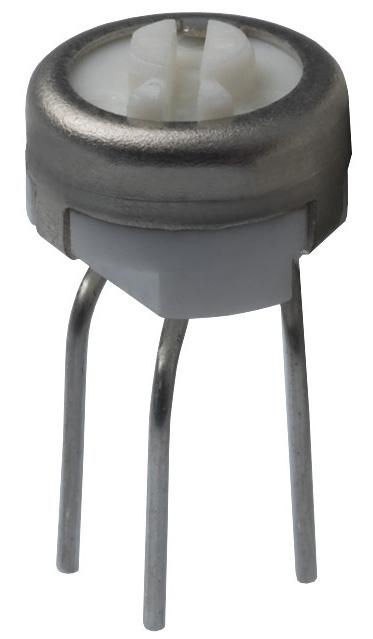

Bourns 3329H1500LF Precision Trimmer Potentiometer
The 3329H1500LF is a high-quality, sealed trimmer potentiometer designed for precise adjustability in industrial and electronic applications. Featuring a 260° mechanical rotation angle and solderable pins, it offers reliable performance with resistance ranges from 10 ohms to 1 megohm. Its RoHS compliance ensures environmental safety, and it supports high-temperature operation up to 150°C. Suitable for calibration, adjustment, and control circuits, this potentiometer provides durable construction, stable resistance variation, and easy adjustment for advanced electronic systems.
Bourns 3329H1500LF Precision Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 1 megohm
- Resistance Tolerance: ±10%
- Absolute Minimum Resistance: 2 ohms or 1%
- Contact Resistance Variation: Max 3 ohms or 3%
- Resistance Adjustment Accuracy: Voltage ≤0.05%, Resistance ≤0.15%
- Power Rating: 0.5 watt at 85°C, 0 watt at 150°C
- Temperature Range: -55°C to +150°C
- Mechanical Rotation: 260° nominal
- Terminal Type: Solderable pins
- Wiper: 50% (±10%)
- Weight: 0.02 oz
- Environmental Resistance: Humidity MIL-STD-202 Method 103, 96 hours
- Vibration: 30 G, Shock: 100 G
- Sealing: Fluorinert test at 85°C
- RoHS compliant: Yes
- Packaging: 50 pcs. per tube, optional tape and reel
- Construction: Sealed, industrial-grade, single-turn
- Terminals: In-line pins, standard resistance codes
- Dimensions: Diameter approx. 6.35 mm, length approx. 12 mm
- Adjustment Tool: H-90
- Certifications: MIL-PRF-22097, MIL-PRF-39035
- Environmental: Sealed against moisture, high-temperature performance
- Style: 1/4” round, single-turn, cermet
- Compliance: RoHS
Buy the Bourns Series 3329H Precision Trimmer Potentiometer: 3329H1500LF
Discover the high-performance Bourns Series 3329H sealed trimmer potentiometer, designed for precise calibration and control in demanding environments. With resistance options from 10 ohms to 1 megohm, it features a 260° adjustable angle, solderable terminals, and RoHS compliance. Constructed for durability and stability, it withstands temperature extremes up to 150°C and offers minimal contact resistance variation. Perfect for calibration, control, and adjustment applications, this device guarantees reliable performance, durability, and easy installation for industrial and electronic systems.
Order your Bourns Series 3329H1500LF sealed trimmer potentiometer today and ensure reliable, precise adjustment for your industrial and electronic projects.
