Bourns 3224J1104E Trimmer Potentiometer
This 4 mm surface-mount trimmer potentiometer features a sealed cermet design suitable for industrial applications. It conforms to EIA/EIAJ/IPC/VECI standards, offering high resistance range from 1.10 ohms to 2 megohms with ±8% tolerance. The device is halogen-free, RoHS compliant, and designed for precision adjustments with a top or side adjustment style, suitable for automatic placement. It supports high temperature ratings up to +150°C, has a low contact resistance variation of 1%, and can withstand environmental stresses such as thermal shock and rotational cycling, ensuring durability and reliability in demanding conditions.
Bourns 3224J1104E Trimmer Potentiometer Specifications:
- Resistance Range: 1.10 to 2 megohm
- Resistance Tolerance: ±8%
- Contact Resistance Variation: 1% or 3 ohms maximum
- Insulation Resistance: 400 megohms minimum at 500 V DC
- Temperature Range: -55°C to +150°C
- Power Rating: 0.1 W at 85°C, 0.4 W at 150°C
- Adjustment Type: Top and side adjustment styles
- Environmental Resistance: Thermal shock, rotational cycling, high temperature endurance
- Materials: Cermet, halogen-free with RoHS compliance
- Physical Dimensions: 4 mm square package, sealing to withstand board wash
- Compliance: RoHS 2002/95/EC, RoHS Recast 2011/65/EU
- Packaging: Reels of 1500, 1000, 850, 600 pieces depending on style

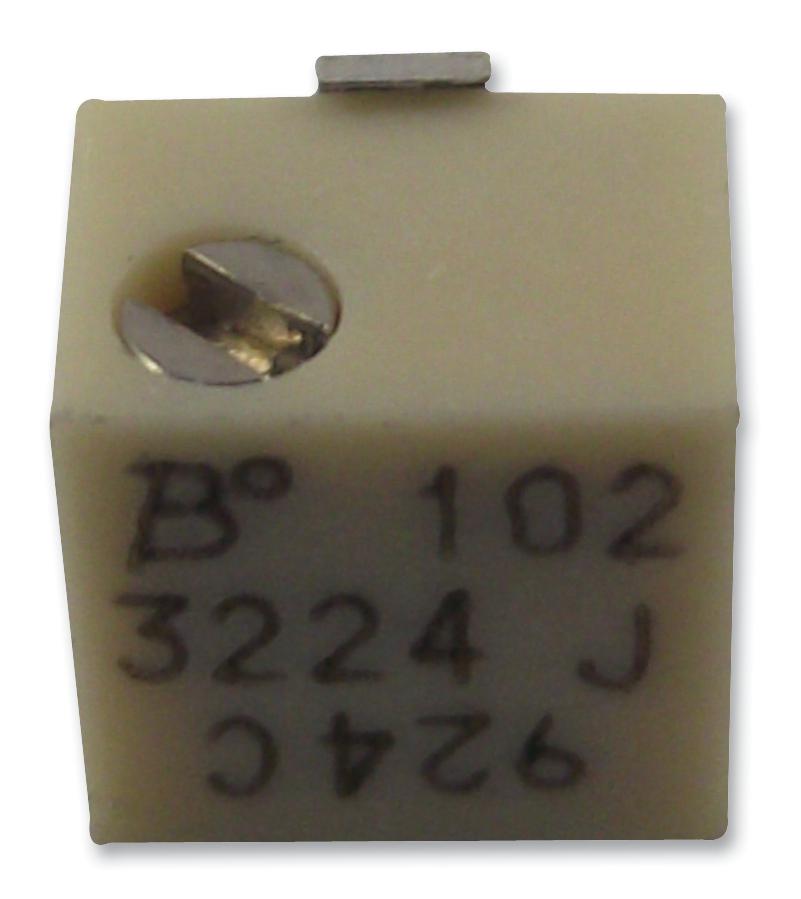

Buy the Buy Bourns 3224J1104E Part Number 3224J1104E Online
Order the Bourns 3224J1104E trimmer potentiometer online today for high precision adjustments in industrial and electronics applications. This sealed cermet device offers resistance from 1.10 ohms to 2 megohms, ensuring durability with RoHS compliance and halogen-free materials. Its 4 mm square form factor supports surface mounting with top and side adjustment options, suitable for automated assembly lines. Capable of withstanding high temperatures up to +150°C, it provides excellent environmental resilience, low contact resistance variation, and reliable long-term performance, making it ideal for demanding electronic control systems and industrial instrumentation.
Get Bourns 3224J1104E today—designed for precision and reliable performance in industrial environments.
Frequently Asked Questions
Where can I buy Bourns 3224J1104E?
You can click on the BUY or RFQ button to purchase 3224J1104E from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3224J1104E?
You can download the 3224J1104E datasheet or visit the Bourns website for support.
Who is the manufacturer of 3224J1104E?
Bourns
