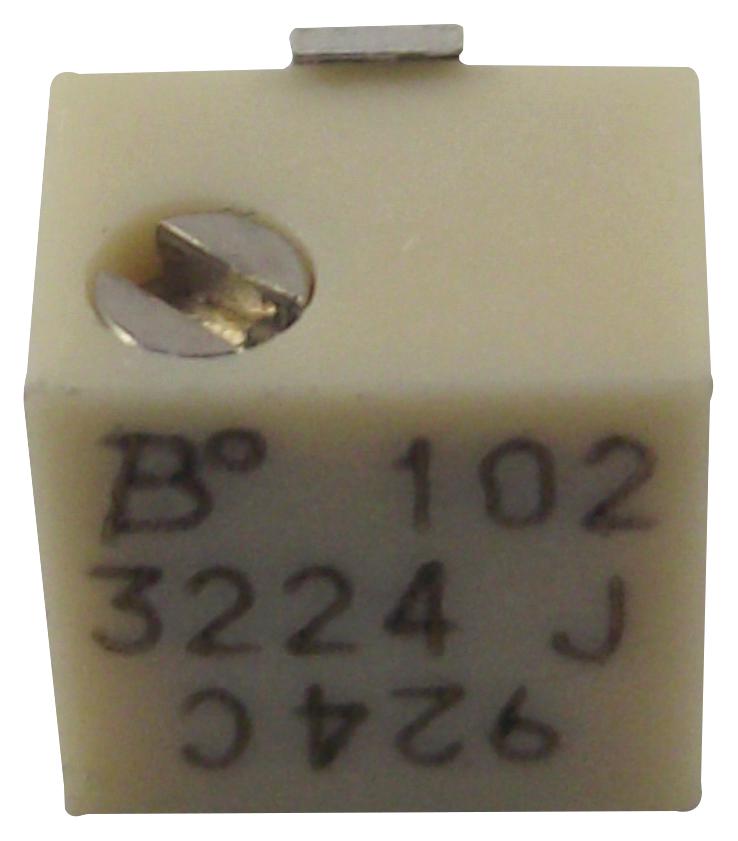

Bourns 3224J1202E 4mm SMD Trimming Potentiometer
The Bourns 3224J-1-202E is a surface mount, 4mm square trimming potentiometer designed for industrial applications. This multiturn cermet potentiometer offers low CRV and is halogen-free with a date code. It's sealed to withstand board wash processing, RoHS compliant, and features a pick and place centering design for easy integration. The potentiometer provides precise adjustment capabilities and is suitable for a wide range of trimming applications.
Bourns 3224J1202E 4mm SMD Trimming Potentiometer Specifications:
- Resistance Range: 10 to 2 megohm
- Resistance Tolerance: ±10 %
- Absolute Min. Resistance: 1 % or 2.0 ohms
- Insulation Resistance: 100 megohms min.
- Dielectric Strength: 600 vac (1 minute)
- Adjustment Angle: 12 turns nom.
- Power Rating: 0.25 watt
- Temperature Range: -65 °C to +150 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert /60 seconds
- Humidity: MIL-STD 202 Method 106V
- Shock: 100 G
- Load Life: @ 85 °C rated power 1,000 hours
- Moisture Sensitivity Level: N/A
- ESD Classification: 2
- Mechanical Stop: Wiper idles
- TorqueWeight: Approximately 0.01 oz.
- Marking: Manufacturer’s code, resistance code and date code
- Solderability: Per MIL-STD-202, Method 208
- Flammability: UL94V0
Buy the 3224J-1-202E BOURNS 4mm SMD Trimming Potentiometer | myMectronic
Securely purchase the Bourns 3224J-1-202E 4mm SMD Trimming Potentiometer online for reliable performance and fast delivery.
