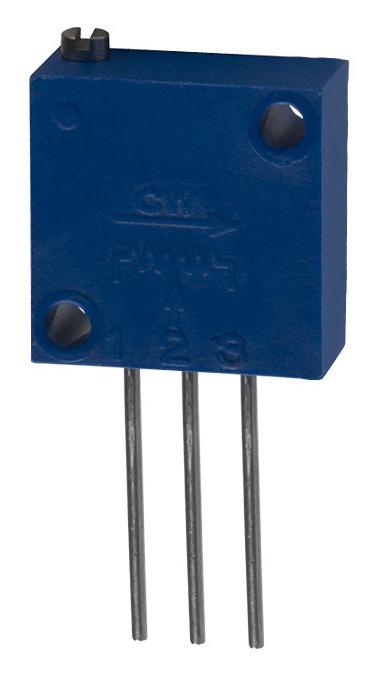

Bourns 3260W1500 Industrial Trimmer Potentiometer
The 3260W1500 is a ¼ inch square trimmer potentiometer designed for precise resistance adjustment in industrial applications. It features multiturn/wirewound construction and is sealed for durability. Listed on the QPL for style RT26 per MIL-R-27208, it complies with RoHS standards. This potentiometer offers resistance ranges from 10 to 25K ohms, with resistance tolerances of ±5% or better. It provides a resistance resolution of up to 1.90%, and operates within a temperature range of -65°C to +150°C. Its robust construction ensures reliable performance in harsh environments, making it ideal for trimming and calibration tasks in electronics and industrial automation systems.
Bourns 3260W1500 Industrial Trimmer Potentiometer Specifications:
- Physical Dimensions: 0.25 inch square, 6.35 mm + 51, weight 0.015 oz.
- Resistance Range: 10 to 25K ohms, standard resistance table, model 3260W1500.
- Resistance Tolerance: ±5%, tighter options available, resistance code 35251.
- Temperature Range: -65°C to +150°C, Power Rating: 0.25 watt at 85°C.
- Operating Voltage: 600 VAC at sea level, dielectric strength 600 VAC nominal.
- Environmental: Humidity MIL-STD-202 Method 106, vibration 30 G, shock 100 G.
- Mechanical: 1 turn adjustment angle, wiper with 50% (±10%) resolution, terminals solderable, sealed.
- Certifications: QPL listed style RT26, RoHS compliant, UL 94V-0 flammability rating.
- Sealing: Sealed construction for durability, test seal per MIL-STD-202 Method 106.
Buy the Buy Bourns Trimmer Potentiometer Part Number 3260W1500 Online
Purchase the Bourns 3260W1500 sealed ¼ inch square trimmer potentiometer online today. Designed for precision and durability, it features resistance ranges from 10 to 25K ohms with tight tolerance options. Its rugged, sealed construction ensures reliable operation in harsh environments, making it ideal for calibration, trimming, and adjustment in electronics, industrial automation, and manufacturing settings. Enjoy fast shipping, competitive pricing, and authentic Bourns quality by ordering this high-performance potentiometer online now.
Order your Bourns Series 3260W1500 sealed trimming potentiometer today and ensure precise resistance adjustment for your industrial automation projects.
Frequently Asked Questions
Where can I buy Bourns 3260W1500?
You can click on the BUY or RFQ button to purchase 3260W1500 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3260W1500?
You can download the 3260W1500 datasheet or visit the Bourns website for support.
Who is the manufacturer of 3260W1500?
Bourns
