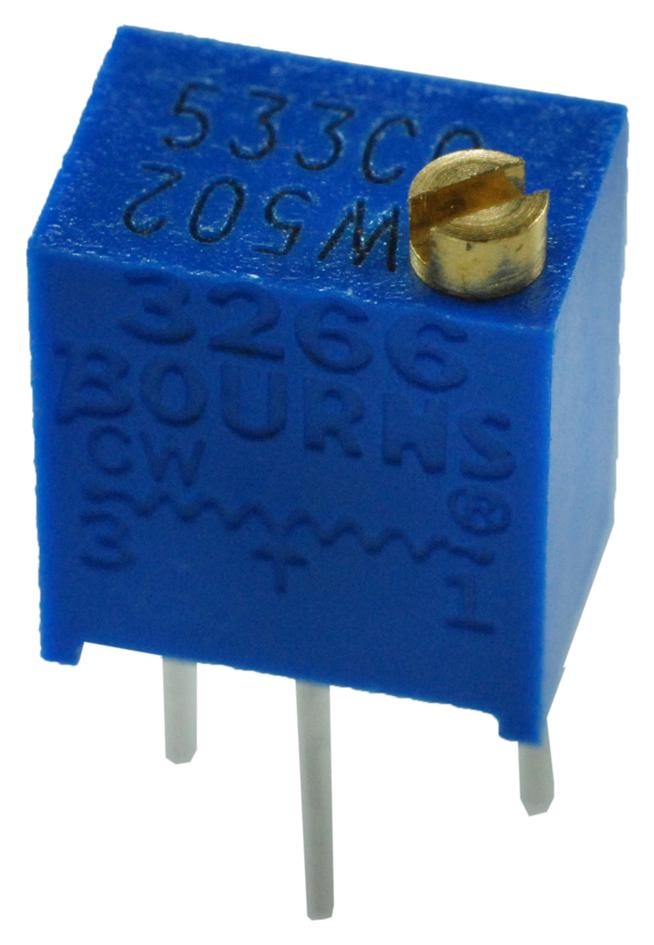

Bourns 3266W1502LF Trimmer Potentiometer
The Bourns 3266 series are cermet, through-hole multi-turn trimmer potentiometers offering precise circuit adjustments. IP65-rated, they feature a 1/4-inch square form factor with options for side or top adjustment via lead screw. These potentiometers provide 12 turns with a rotational life of 200 cycles, resistances from 10 ohms to 1 megaohm, and a tolerance of ±10%. They operate effectively from -55°C to +125°C with a power rating of 0.25W, and their design allows thorough PCB cleaning due to standoffs.
Bourns 3266W1502LF Trimmer Potentiometer Specifications:
- Resistance Range: 10 ohms to 1 megaohm
- Resistance Tolerance: ±10%
- Power Rating: 0.25 watt at 70°C
- Temperature Range: -55°C to +125°C
- Temperature Coefficient: ±100 ppm/°C
- Rotational Life: 200 cycles
- Adjustment: Side or top, 12 turns
- Sealing: IP65-rated, facilitates PCB washing
- Physical: 1/4-inch square form factor, solderable terminals
- Material: Cermet, lead screw adjustment
Buy the Buy Bourns Trimmer Potentiometers Part Number 3266W1502LF Online
Enhance your electronic projects with the Bourns Trimmer Potentiometer series, featuring precise 12-turn adjustment, resistance from 10 ohms to 1MΩ, IP65 sealing, and excellent temperature stability. Suitable for calibration and fine-tuning circuits, these durable devices are easy to install and maintain. Achieve high accuracy, reliable performance, and thorough PCB cleaning with advanced sealing and robust construction. Perfect for industrial, automation, and electronic design applications requiring precise resistance adjustments in challenging environments.
Get Bourns 3266W1502LF today—designed for precise calibration and long-lasting durability.
Frequently Asked Questions
Where can I buy Bourns 3266W1502LF?
You can click on the BUY or RFQ button to purchase 3266W1502LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3266W1502LF?
You can download the 3266W1502LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3266W1502LF?
Bourns
