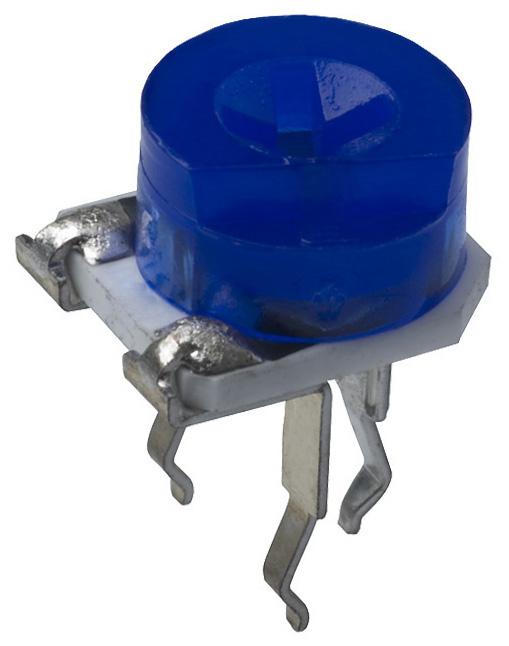

Bourns 3306P1504 6 mm Round Trimpot
The Bourns 3306P-1-504 is a precision 6mm round trimming potentiometer designed for a wide range of industrial applications. It offers front and top adjustment styles, providing flexibility in design and assembly. The potentiometer features a wide resistance range, adjustable angle, and robust construction for reliable performance. Its dust-resistant design and versatile mounting options make it suitable for challenging environments. RoHS compliant, it aligns with environmental regulations and promotes sustainable practices. This trimpot is ideal for applications requiring fine adjustments and precise control.
Bourns 3306P1504 6 mm Round Trimpot Specifications:
- Standard Resistance Range: 100 ohms to 1 megohm
- Resistance Tolerance: ±25 % std.
- Absolute Minimum Resistance: 2 % max.
- Contact Resistance Variation: 3 % max.
- Resolution: Essentially infinite
- Adjustment Angle: 215 ° nom.
- Power Rating: 0.2 watt @ 70 °C
- Temperature Range: -25 °C to +100 °C
- Temperature Coefficient: ±250 ppm/°C
- Load Life: 1,000 hours 0.2 watt @ 70 °C (5 % ΔTR)
- Mechanical Angle: 260 ° ±20 °
- Torque (Operating): 4.5 oz-in. max.
- Stop Strength: 6.5 oz -in. min.
- Terminals: Solderable pins
- Marking: Manufacturer’s trademark, resistance code
- Standard Packaging: 200 pcs. per bag
- Adjustment Tool: H-90
Buy the 3306P-1-504 BOURNS 6 mm Round Trimpot | myMectronic
Securely purchase the Bourns 3306P-1-504 6 mm Round Trimpot online for reliable component sourcing.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3306P1504?
You can click on the BUY or RFQ button to purchase 3306P1504 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3306P1504?
You can download the 3306P1504 datasheet or visit the Bourns website for support.
Who is the manufacturer of 3306P1504?
Bourns
