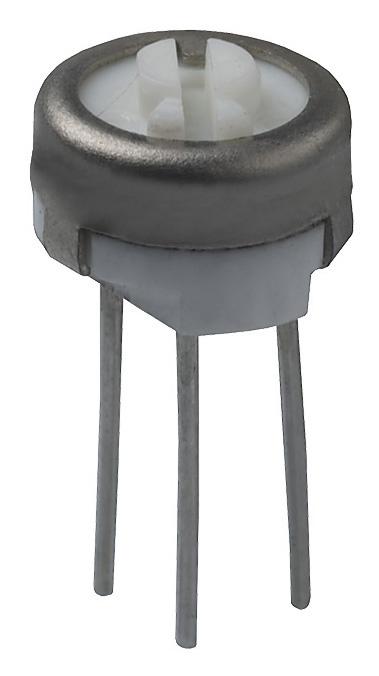

Bourns 3329P1101LF 1/4 ˝ Round Trimming Potentiometer
The Bourns 3329P-1-101LF is a versatile 1/4˝ round trimpot potentiometer designed for a wide range of industrial applications. This potentiometer offers a sealed construction, ensuring reliable performance in various environments. It is RoHS compliant, meeting environmental standards, and is available with multiple terminal styles to accommodate different circuit designs. The 3329P-1-101LF is ideal for trimmer applications, providing precise adjustment of resistance values in circuits. Its robust design and reliable performance make it a suitable choice for industrial equipment, instrumentation, and other demanding applications.
Bourns 3329P1101LF 1/4 ˝ Round Trimming Potentiometer Specifications:
- Resistance Range: 10 to 1 megohm
- Resistance Tolerance: ±10 % std.
- Absolute Minimum Resistance: 2 ohms
- Contact Resistance Variation: 3.0 % or 3 ohms max.
- Adjustment Angle: 240 ° nom.
- Power Rating @ 85 °C: 0.5 watt
- Power Rating @ 150 °C: 0 watt
- Temperature Range: -55 °C to +150 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours
- Rotational Life: 200 cycles
- Mechanical Angle: 260 ° nom.
- Torque: 5.0 oz-in. max.
- Stop Strength: 5.0 oz-in. min.
- Weight: 0.02 oz
- Marking: Manufacturer’s trademark, resistance code, date code, manufacturer’s model number and style
Buy the 3329P-1-101LF BOURNS 1/4 ˝ Round Trimming Potentiometer | myMectronic
Securely purchase the Bourns 3329P-1-101LF trimpot potentiometer online for reliable performance and fast delivery.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3329P1101LF?
You can click on the BUY or RFQ button to purchase 3329P1101LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3329P1101LF?
You can download the 3329P1101LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3329P1101LF?
Bourns
