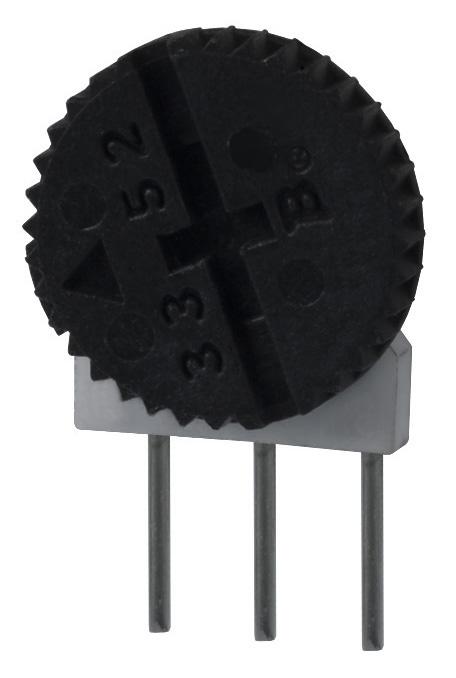

Bourns 3352W1105LF Round Trimming Potentiometer
The Bourns 3352W-1-105LF is a versatile trimming potentiometer designed for various industrial applications. Its stable cermet element provides infinite resolution, ensuring precise adjustments. This potentiometer boasts a compact design, RoHS compliance, and a wide temperature range (-55°C to +125°C), making it suitable for demanding environments. It's ideal for trimmer applications and offers a reliable solution for adjusting resistance in electronic circuits.
Bourns 3352W1105LF Round Trimming Potentiometer Specifications:
- Standard Resistance Range: 10 to 2 megohms
- Resistance Tolerance: ±20 % std.
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 1.0 % or 1 ohm max.
- Adjustability Voltage Divider: ±0.05 %
- Rheostat: ±0.25 %
- Resolution: Infinite
- Dielectric Strength Sea Level: 500 vac
- Dielectric Strength 80,000 Feet: 350 vac
- Adjustment Angle: 205 ° nom.
- Power Rating (250 volts max.) 85 °C: 0.50 watt
- Power Rating (250 volts max.) 125 °C: 0 watt
- Temperature Range: -55 °C to +125°C
- Temperature Coefficient: ±100 ppm/ºC (2K & up)
- Humidity: MIL-STD-202 Method 103
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours 0.5 watt @ 85 °C
- Rotational Life: 200 cycles
- Mechanical Angle: 250 ° nom.
- Torque: 3.0 oz-in. max.
- Stop Strength: 8 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.01 oz.
- Marking: Manufacturer’s trademark, resistance value and model number
- Standard Packaging: 100 pcs. per bag
- Adjustment Tool: H-90
