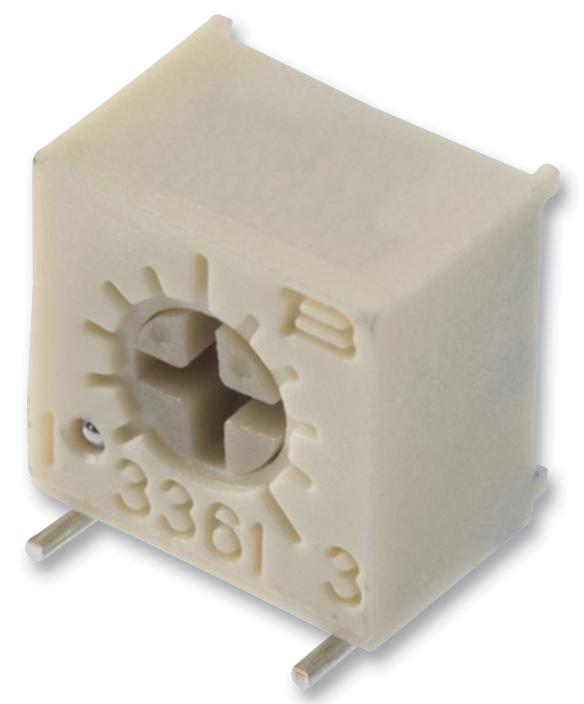

Bourns 3361S1502GLF SMD Trimpot
The 3361 1/4 inch Square SMD Trimpot is a high-precision, sealed trimming potentiometer designed for surface-mount applications. Featuring a single-turn, cermet element, it offers resistance ranges from 10 ohms to 2 megohms with standard and tighter tolerances. This RoHS-compliant component withstands harsh environments, including immersion cleaning processes, and has a 270° adjustment angle. Its compact miniature package ensures easy installation, making it ideal for fine-tuning electronic circuits requiring reliable and precise resistance adjustments in industrial, automation, and control systems.
Bourns 3361S1502GLF SMD Trimpot Specifications:
- Resistance Range: 10 Ω to 2 MΩ
- Resistance Tolerance: ±10% (standard), tighter available
- Absolute Minimum Resistance: 2 Ω
- Contact Resistance Variation: Max 3 Ω or 3%
- Adjustability: 270° rotation
- Voltage: 50 V max
- Insulation Resistance: 500 MΩ at 100 VDC
- Dielectric Strength: 80,000 V at sea level
- Temperature Range: -55°C to +105°C
- Temperature Coefficient: Not specified
- Sealing: RoHS compliant, sealed for harsh environments
- Mechanical Angle: 270°, max
- Torque: Max 0.02 oz-in
- Stop Strength: Min 7 oz-in
- Soldering: 0.38 + 0.05 seconds exposure at 125°C
- Vibration: 30 G
- Shock: 100 G
- Load Life: 1,000 hours @ 70°C
- Rotational Life: 200 cycles
- Physical Dimensions: 0.25 in x 0.30 in
- Packaging: 500 pieces per reel, RoHS compliant tin-plated terminations
Buy the Buy Bourns 3361 SMD Trimpot Part Number 3361S1502GLF Online
Enhance your electronic designs with the Bourns SMD Trimpot, model 3361S1502GLF. Designed for surface-mount applications, this sealed trimming potentiometer provides precise resistance tuning from 10 ohms to 2 megaohms. Its robust construction withstands harsh environments including immersion cleaning, temperature extremes, vibration, and shock. With a 270° adjustment angle and RoHS compliance, it is ideal for industrial automation, control circuits, and automation systems needing reliable fine-tuning in compact spaces. Purchase online today for quality, durability, and precision.
Buy Bourns 3361S1502GLF now and experience unmatched reliability and precise resistance adjustment in demanding industrial environments.
Frequently Asked Questions
Where can I buy Bourns 3361S1502GLF?
You can click on the BUY or RFQ button to purchase 3361S1502GLF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3361S1502GLF?
You can download the 3361S1502GLF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3361S1502GLF?
Bourns
