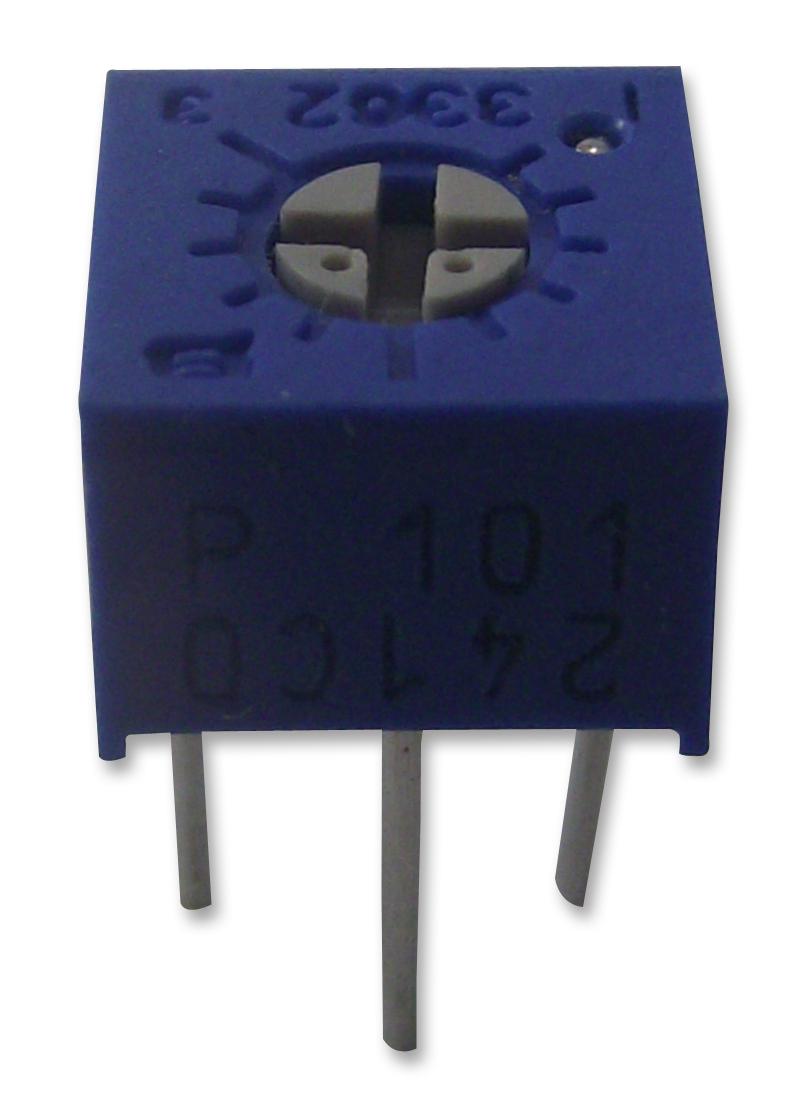

Bourns 3362P1200LF Trimmer potentiometer
The 3362P1200LF is a high-quality trimmer potentiometer designed for precision adjustments in electronic circuits. Featuring a 270° mechanical rotation and sealed construction, it withstands harsh environments and immersion cleaning processes. This miniature, single-turn, cermet device is suitable for various industrial applications, providing reliable resistance tuning with 10 ohms to 2 megohms resistance range. It includes RoHS compliance, solderable pins, and a knob option for finger adjustments, making it versatile for manufacturing and service purposes in control systems.
Bourns 3362P1200LF Trimmer potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: +10 %
- Absolute Minimum Resistance: 0.1% or 20 ohms
- Contact Resistance Variation: 1 % or 3 ohms max.
- Power Rating: 0.50 watt at 70 °C
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: 100 ppm/°C
- Mechanical Angle: 270 ° nom.
- Solderable Pins: Yes
- Weight: 0.02 oz.
- RoHS Compliant Version: Yes
- Physical Dimensions: Typical size 0.89 in. x 0.46 in., pin pitch 0.25 inch
- Sealed construction withstands harsh environments and immersion cleaning
- Markings: Resistance code, terminal numbers, model number, date code
- Rotational Life: 200 cycles
- Environmental Tests: MIL-STD-202 Method 103, 96 hours Fluorinert
- Terminals: In-line pin configuration, tin-plated
Buy the Bourns Series Trimmer: 3362P1200LF Precision Sealed Potentiometer
Order the Bourns 3362P1200LF trimmer potentiometer online now to ensure precise resistance adjustment for your electronics projects. This sealed, miniature device features a 270° mechanical rotation, RoHS compliance, and robust construction to withstand harsh environments and immersion cleaning processes. Ideal for calibration, control systems, and industrial applications, it offers a resistance range from 10 ohms to 2 megohms with tight tolerance and long mechanical life. Purchase today for dependable performance and quick delivery to your project or repair needs.
Get Bourns 3362P1200LF today—built for precision, durability, and reliable resistance tuning in industrial applications.
Frequently Asked Questions
Where can I buy Bourns 3362P1200LF?
You can click on the BUY or RFQ button to purchase 3362P1200LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3362P1200LF?
You can download the 3362P1200LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3362P1200LF?
Bourns
