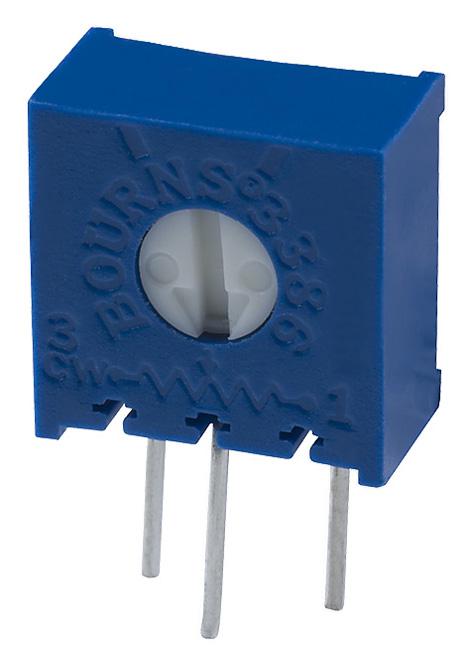

Bourns 3386C1201LF Square Trimming Potentiometer
The Bourns 3386C-1-201LF is a versatile 3/8" square trimming potentiometer ideal for a wide range of industrial applications requiring precise adjustment. This potentiometer features a robust cermet resistive element, ensuring reliable performance and durability. It's designed for single-turn operation, simplifying the adjustment process. Available options include a knob for finger adjustment, an extended shaft for remote operation, and various terminal styles to suit different circuit board layouts. RoHS compliant versions are available, meeting environmental standards. The Bourns 3386 series is a popular choice for calibration, fine-tuning, and user-defined settings in electronic equipment.
Bourns 3386C1201LF Square Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10 %
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 2 % or 3 ohms max.
- Adjustability: Infinite
- Voltage Divider: ±0.05 %
- Rheostat: ±0.15 %
- Insulation Resistance: 500 vdc
- Resolution: Infinite
- Dielectric Strength: 900 vac (Sea Level), 350 vac (70,000 Feet)
- Adjustment Angle: 280 ° nom.
- Power Rating: 0.5 watt (85 °C), 0.1 watt (125 °C)
- Temperature Range: -55 °C to +125 °C
- Temperature Coefficient: ±100 ppm/°C
- Seal Test: 85 °C Fluorinert
- Humidity: MIL-STD-202 Method 103
- Vibration: 30 G (1 % ΔTR; 1 % ΔVR)
- Shock: 100 G (1 % ΔTR; 1 % ΔVR)
- Load Life: 1,000 hours (3 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
- Rotational Life: 200 cycles (4 % ΔTR; 3 % or 3 ohms, whichever is greater, CRV)
- Mechanical Angle: 310 ° nom.
- Torque: 5.0 oz-in. max.
- Stop Strength: 15.0 oz -in. min.
- Terminals: Solderable pins
- Weight: 0.03 oz
- Marking: Manufacturer’s trademark, resistance code, wiring diagram, date code, manufacturer’s model number and style
- Flammability: U.L. 94V-0
Buy the 3386C-1-201LF BOURNS Square Trimming Potentiometer | myMectronic
Purchase the Bourns 3386C-1-201LF trimming potentiometer securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 3386C1201LF?
You can click on the BUY or RFQ button to purchase 3386C1201LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3386C1201LF?
You can download the 3386C1201LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3386C1201LF?
Bourns
