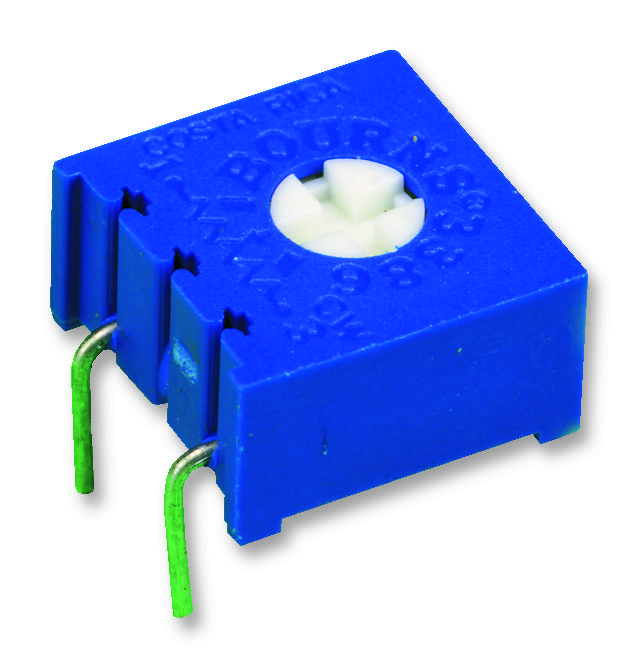

Bourns 3386G1503LF Trimming Potentiometer
The 3386 Series are 3/8 inch square trimmer potentiometers used for precision adjustments in electronic circuits. Suitable for industrial applications, these sealed, single-turn cermet devices offer reliable performance with adjustable resistance from 10 ohms to 2 megohms. They feature solderable pins, RoHS compliance, and various adjustment styles including side and top adjust options. Designed for durability, the series provides a resistance tolerance of ±10%, high insulation resistance, and a wide operating temperature range of -55°C to +125°C. Ideal for calibration, waveform shaping, and signal tuning tasks.
Bourns 3386G1503LF Trimming Potentiometer Specifications:
- Resistance Range: 10 ohms to 2 megohms
- Resistance Tolerance: ±10%
- Absolute Minimum Resistance: 2 ohms max.
- Contact Resistance Variation: 2% or 3 ohms max.
- Temperature Range: -55°C to +125°C
- Power Rating: 0.5 watt at 85°C
- Insulation Resistance: 1000 megohms min.
- Dielectric Strength: 900 vac at sea level, 350 vac at 70,000 ft
- Adjustment Angle: 280° nominal
- Mechanical Angle: 310° nominal
- Torque: Max 5.0 oz-in.
- Stop Strength: Min 15.0 oz-in.
- Terminals: Solderable pins
- Flammability: UL 94V-0
- Package: 50 pcs. per tube, RoHS compliant
- Adjustment Types: Side and top adjust, knob, extended shaft, cross-slot rotor
- Certification: RoHS Directive compliant
Buy the Bourns 3386G1503LF – Reliable Trimming Potentiometer for Industrial Applications
Experience precise resistance adjustment with Bourns 3386G1503LF Trimming Potentiometer. This high-quality, sealed device features a 3/8 inch square form factor, making it ideal for calibration, waveform shaping, and signal tuning in industrial and electronics applications. With resistance values ranging from 10 ohms to 2 megohms, it offers high insulation resistance, a wide operating temperature of -55°C to +125°C, and RoHS compliance. Buy online today to ensure reliable performance and easy integration into your designs.
Get Bourns 3386G1503LF today—designed for precision adjustments and long-lasting durability in electronic calibration.
Frequently Asked Questions
Where can I buy Bourns 3386G1503LF?
You can click on the BUY or RFQ button to purchase 3386G1503LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 3386G1503LF?
You can download the 3386G1503LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 3386G1503LF?
Bourns
