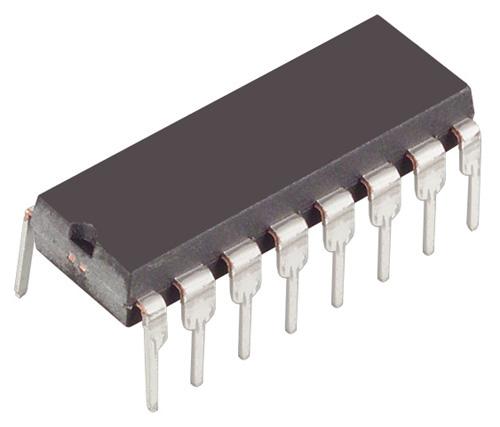

Bourns 4114R1470LF Molded DIP Resistor Network
Bourns 4114R-1-470LF is a thick film molded DIP resistor network designed for a wide range of applications. These networks offer precision resistance values, excellent tracking, and superior package integrity. They are compatible with automatic insertion equipment, simplifying manufacturing processes. The RoHS compliant versions are available, meeting environmental standards. Common applications include DRAM and SCSI systems, as well as R/2R ladder networks where precise resistance ratios are critical. The part features a resistance range from 10 ohms to 10 megohms, with various configurations including isolated, bussed, and dual resistor options to meet diverse circuit design needs.
Bourns 4114R1470LF Molded DIP Resistor Network Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω)
- Resistance Tolerance: See circuits
- Operating Temperature: -55 °C to +125 °C
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Flammability: Conforms to UL94V-0
- Lead Frame Material: Copper, solder coated
- Body Material: Novolac epoxy
- Power Rating per Resistor: 0.250 watt (at 70 °C)
- Resistance Code: First 2 digits are significant, Third digit represents the number of zeros to follow.
Buy the 4114R-1-470LF BOURNS Molded DIP Resistor Network | myMectronic
Purchase the Bourns 4114R-1-470LF Molded DIP Resistor Network securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns 4114R1470LF?
You can click on the BUY or RFQ button to purchase 4114R1470LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 4114R1470LF?
You can download the 4114R1470LF datasheet or visit the Bourns website for support.
Who is the manufacturer of 4114R1470LF?
Bourns
