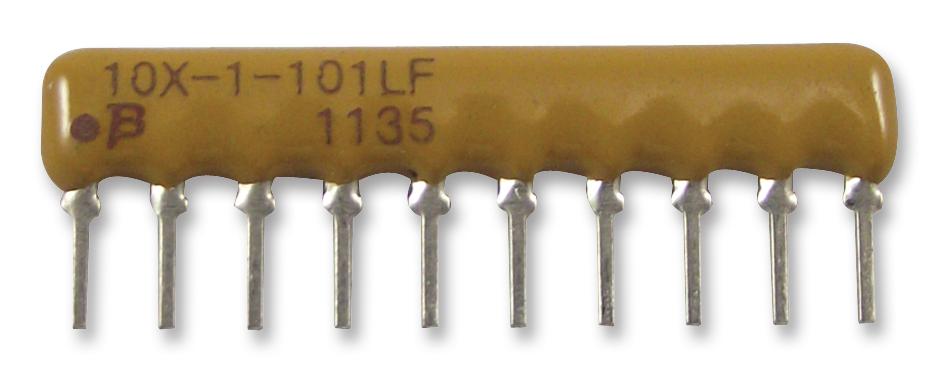

Bourns 4610X101103LF Thick Film Conformal SIP Resistor
The Bourns 4610X series offers thick film conformal SIP resistors designed for a wide range of applications. These resistors feature permanent identification markings for easy traceability and are RoHS compliant, meeting environmental standards. The low-profile design allows for compatibility with DIPs, and the availability of various pin packages enhances design flexibility. They are recommended for rosin flux and no-clean flux processes, making them suitable for modern electronics manufacturing. The series includes bussed, isolated, and dual terminator configurations to meet diverse circuit requirements.
Bourns 4610X101103LF Thick Film Conformal SIP Resistor Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- Resistance Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP
- Physical Configuration: X = Thick Film Low Profile
- Electrical Configuration: - 101 = Bussed, - 102 = Isolated, - 104 = Dual Terminator
- Marking: Permanent identification
- Pin Packages: Wide assortment
- Resistance Code: First 2 digits are significant, Third digit represents the number of zeros to follow
