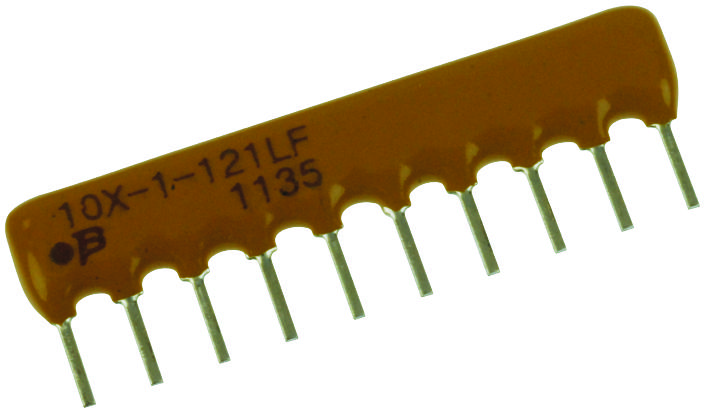

Bourns 4610X101272LF Thick Film Conformal SIP
Bourns 4610X-101-272LF is a thick film conformal SIP resistor network designed for a variety of applications requiring precise resistance and compact size. These networks offer low profile compatibility with DIPs, RoHS compliance, and a wide assortment of pin packages to enhance design flexibility. They are commonly used in DRAM applications, SCSI interfaces, and R/2R ladder networks, providing reliable resistance in a space-saving format. The marking on a contrasting background ensures permanent identification, and the available Ammo-pak packaging simplifies handling and assembly.
Bourns 4610X101272LF Thick Film Conformal SIP Specifications:
- Resistance Range: 10 ohms to 10 megohms
- Maximum Operating Voltage: 100 V
- Temperature Coefficient of Resistance: ±100 ppm/°C (below 50 Ω), ±250 ppm/°C (above 2.2 megohms)
- TCR Tracking: 50 ppm/°C
- Resistor Tolerance: See circuits
- Insulation Resistance: 10,000 megohms minimum
- Dielectric Withstanding Voltage: 200 VRMS
- Operating Temperature: -55 °C to +125 °C
- Short Time Overload: ±0.25 %
- Load Life: ±1.00 %
- Moisture Resistance: ±0.50 %
- Resistance to Soldering Heat: ±0.50 %
- Terminal Strength: ±0.25 %
- Thermal Shock: ±0.25 %
- Flammability: Conforms to UL94V-0
- Body Material: Epoxy resin
- Standard Packaging: Bulk, Ammo-pak available
- Model: 46 = Conformal SIP
- Physical Configuration: X = Thick Film Low Profile
- Electrical Configuration: - 101 = Bussed, - 102 = Isolated, - 104 = Dual Terminator
- Marking: Permanent identification on contrasting background
- Resistance Code: First 2 digits are significant, Third digit represents the number of zeros to follow
