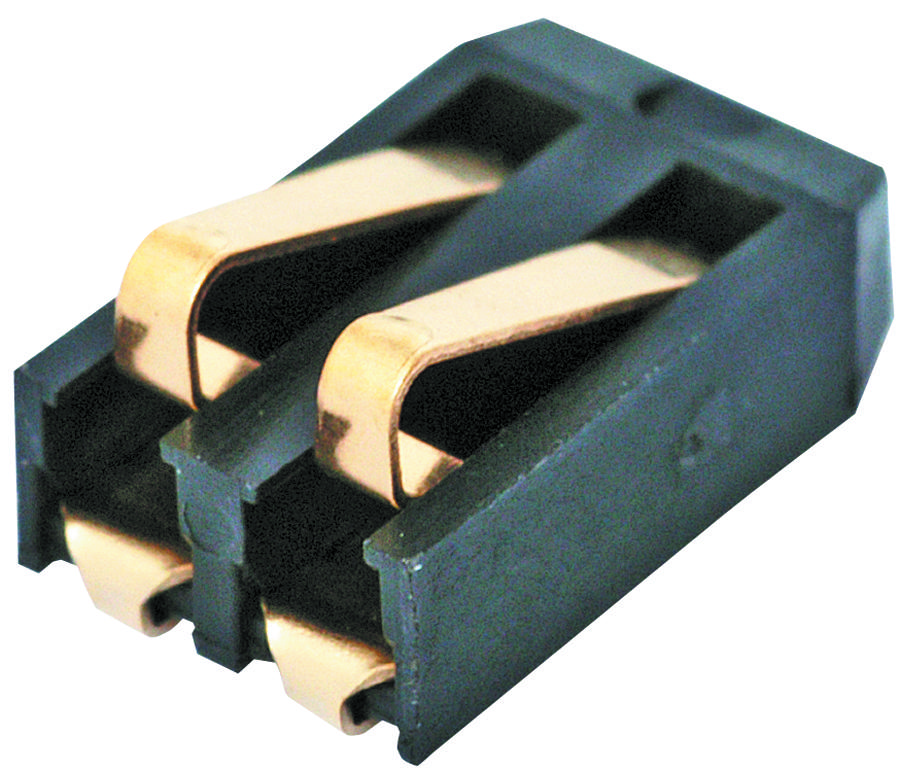

Bourns 70AAJ2M0G Modular Battery Contact
The 70AAJ-2-M0G is a two-position male modular battery contact designed for reliable electrical connections in various electronic applications. It features a glass-reinforced thermoplastic insulator and copper alloy contacts with precious metal finishes, ensuring high conductivity and durability. The contact pitch and height are 2.54mm, making it suitable for compact assemblies. It supports end-to-end stacking, is pick-and-place compatible, and meets UL94V-0 flammability standards. Its twin hot contacts with a symmetrical pad layout ensure stable, high cycle life performance, ideal for portable, medical, and measurement devices.
Bourns 70AAJ2M0G Modular Battery Contact Specifications:
- Material: Glass reinforced thermoplastic insulator, black
- Contact Material: Copper alloy with precious metal finishes
- Contact Finish: Gold over Ni
- Contact Pitch: 2.54mm
- Contact Height: 2.54mm
- Number of Positions: 2
- Number of Contacts: 2
- Operating Temperature: -55°C to 125°C
- Dielectric Voltage AC: 500 V
- Insulating Resistance: 1000 Mohms min.
- Durability: 10,000 cycles min.
- Contact Resistance: 25 milliohms max.
- Flammability: UL94V-0 standard
- Vibration Resistance: 30 G, 10-2000 Hz
- Shock Resistance: 100 G
- Dimensions: Length varies with model, typical connector width approximately 16-24 mm
Buy the Bourns 70AAJ2M0G – Reliable Modular Battery Contact for Industrial Applications
Secure your electronic projects with the Bourns modular battery contact. Designed for high durability and reliable connections, this two-position male contact features a compact 2.54mm pitch, gold-plated contacts, and a glass-reinforced thermoplastic insulator. Compatible with pick-and-place manufacturing, it supports end-to-end stacking and provides a high cycle life, ideal for portable devices, medical equipment, and measurement instruments. Easy to install and UL94V-0 approved, ensuring safety and performance for your critical applications.
Buy Bourns 70AAJ2M0G now and experience unmatched reliability and performance with its high durability and stackable contact design.
Frequently Asked Questions
Where can I buy Bourns 70AAJ2M0G?
You can click on the BUY or RFQ button to purchase 70AAJ2M0G from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part 70AAJ2M0G?
You can download the 70AAJ2M0G datasheet or visit the Bourns website for support.
Who is the manufacturer of 70AAJ2M0G?
Bourns
