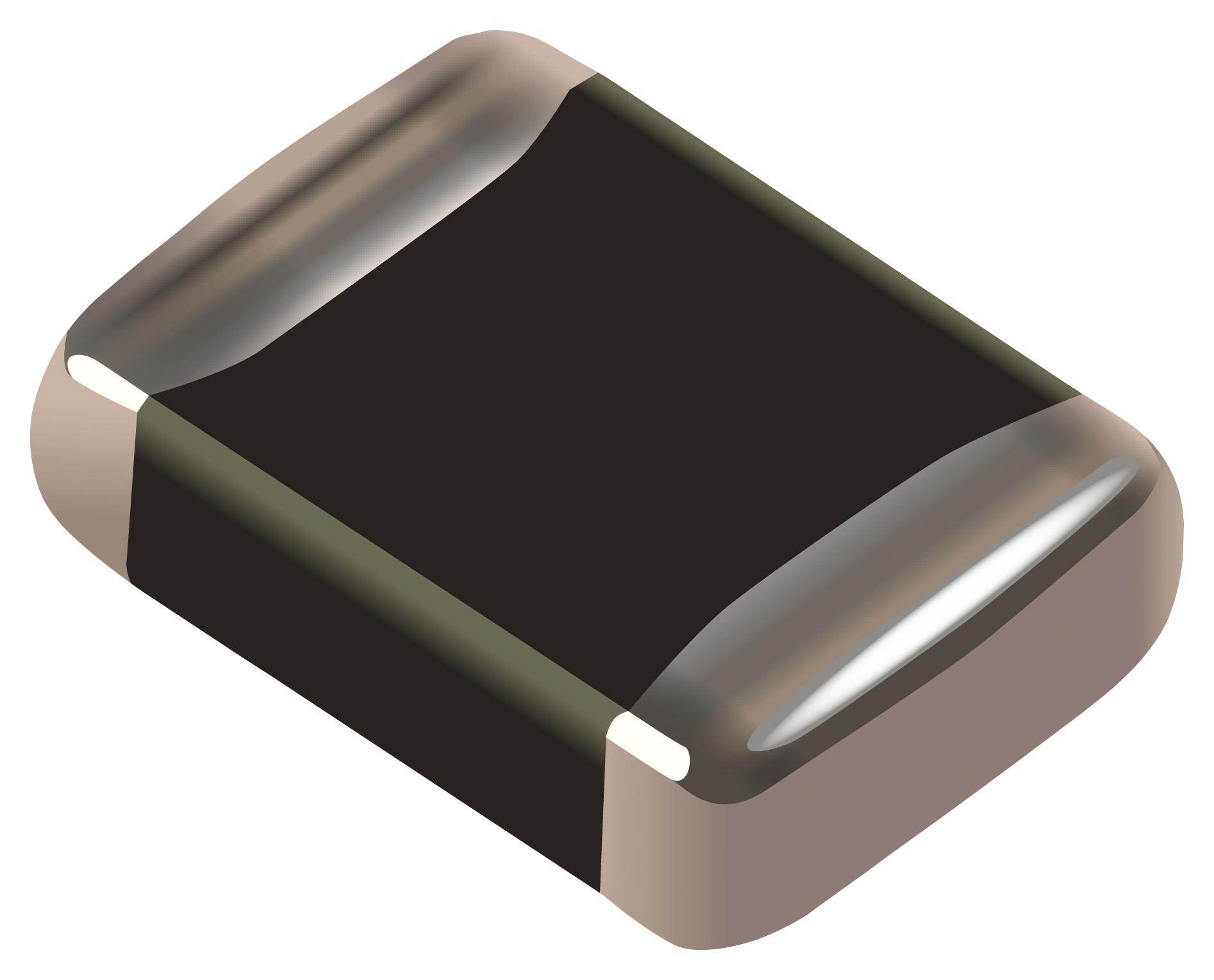

Bourns AV14K1210401NIR1 Automotive Varistor
The AV14K1210401NIR1 is an automotive-grade multilayered varistor designed for transient suppression in electronic automotive systems. It features NiSn barrier end terminations suitable for Pb and Pb-free reflow soldering, with high energy handling capabilities up to 50 J upon request. Its robust construction offers excellent protection against voltage transients such as load dump and jump start conditions, operating reliably from -55°C to +125°C. The device ensures minimal leakage current with a response time under 2 ns, making it ideal for precisely protecting sensitive vehicle electronics like ABS, airbags, and ignition systems.
Bourns AV14K1210401NIR1 Automotive Varistor Specifications:
- Maximum Continuous AC Voltage: 20 Vrms
- Peak Surge Current: 120A
- Maximum Surge Energy: 50 J (upon request)
- Operating Temperature Range: -55°C to +125°C
- Response Time: <2 ns
- End Terminations: NiSn barrier type (Pb and Pb-free solder compatible)
- Dimensions: 32.00 x 20.00 x 10.35 mm
- Soldering Method: Wave and Infrared Reflow with RoHS compliance
- Capacitance: 6.25 pF at 1 kHz
- Pulse Rating Curves: Up to 120A Imax, with specific size ratings
- Storage Temperature: -55°C to +150°C
- Climatic Category: 55/125/56
Buy the Buy Bourns AV Series 1210 Part Number AV14K1210401NIR1 Online
Secure your automotive electronic systems today by ordering the Bourns AV Series 1210 varistor online. Designed for transient suppression, it offers high energy handling, rapid response times, and reliable operation from -55°C to +125°C. Its NiSn barrier end terminations ensure compatibility with Pb and Pb-free soldering processes, making assembly easy and environmentally friendly. Ideal for protecting critical vehicle components like anti-lock brakes, airbags, and ignition modules, this device guarantees lasting performance in demanding automotive environments. Shop now for fast delivery and assured protection.
Order your Bourns AV14K1210401NIR1 automotive varistor today and safeguard your vehicle electronics with dependable transient suppression.
