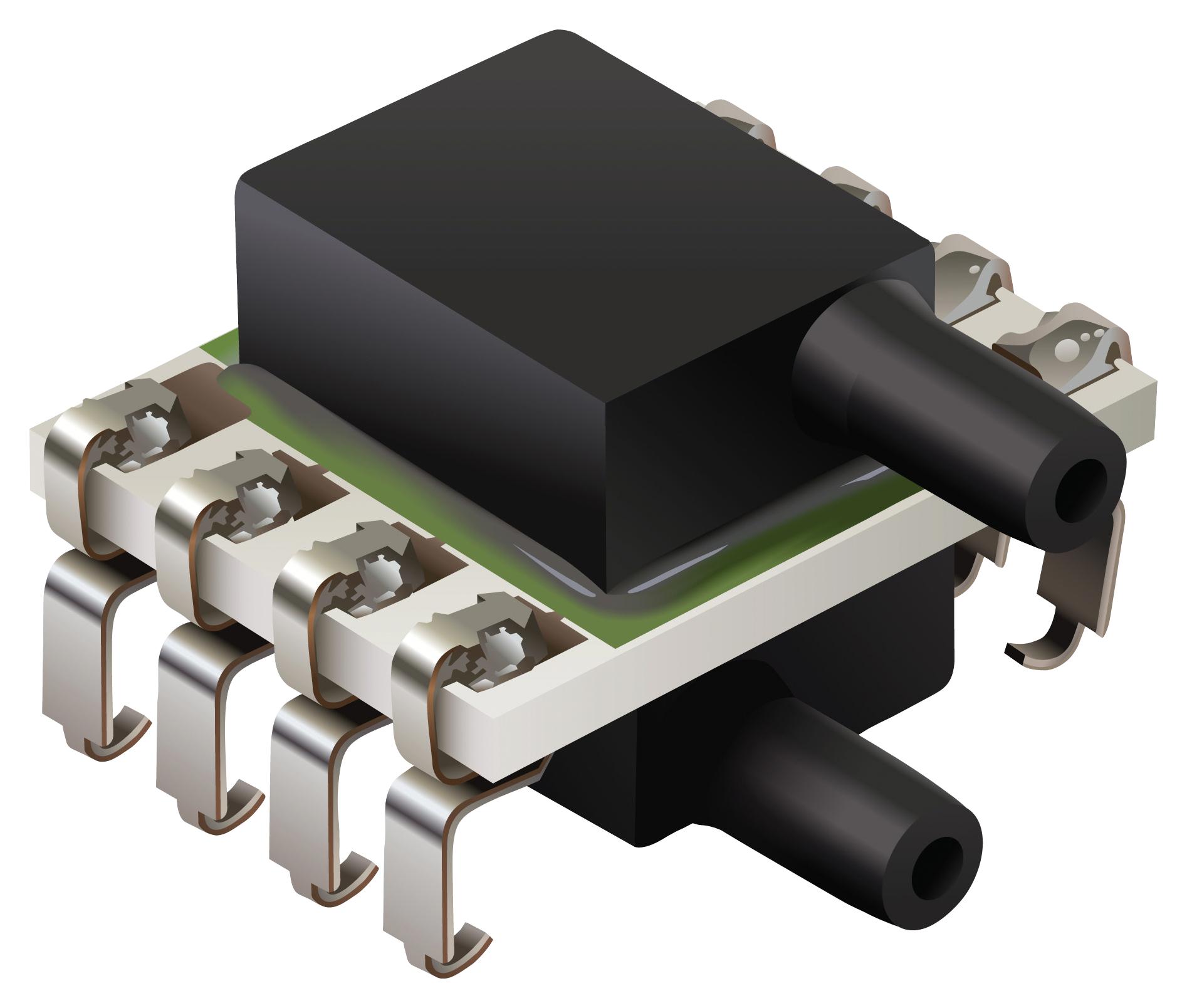

Bourns BPS310AD0P152DG Low Pressure Sensor
The Bourns BPS310 series is a 12 mm uncompensated low pressure sensor designed for precise pressure measurement in industrial, medical, and HVAC applications. It features ultra-low pressure sensing, suitable for clean, dry air and non-corrosive gases. The sensor operates over a temperature range of -40°C to +85°C, with a storage temperature from -55°C to +100°C. It provides a voltage output with high resolution, long-term stability, and RoHS compliance. Ideal for process monitoring, diagnostic equipment, and automation processes, ensuring reliable performance in demanding environments.
Bourns BPS310AD0P152DG Low Pressure Sensor Specifications:
- Supply Voltage: 5 V typical, 15 V maximum
- Supply Current: 3.0 mA maximum
- Operating Temperature: -40 °C to +85 °C
- Storage Temperature: -55 °C to +100 °C
- Pressure Range: 0.15 to 1.0 psi, 5 to 30 psi
- Full Scale Output: 375+7.5mV to 160+32mV depending on pressure
- Media Compatibility: Non-corrosive dry gases, air
- Moisture Sensitivity Level: Level 1
- ESD Classification: 2kV (HBM)
- Weight: 1.307 grams (0.046 oz)
- Certifications: RoHS3 compliant
- Packaging: Tape and reel, 250 pieces per reel
- Dimensions: 12 mm size, PCB layout as specified
- Pressure Accuracy: ±2% FS
- Temperature Coefficient: -3000 + 500 PPM/°C to -2500 + 500 PPM/°C
- Offset: 375+7.5mV to 160+32mV
- Response Time: Customizable upon request
- Application: HVAC, Process Monitoring, Medical devices
Buy the Bourns BPS310 Uncompensated Pressure Sensor – Reliable Low Pressure Measurement for Industrial Applications
Discover the Bourns BPS310 low pressure sensor, engineered for accurate and stable pressure measurement in various industrial and medical environments. Its uncompensated design allows for seamless integration into HVAC systems, process monitoring, and diagnostic equipment. With a wide operating temperature range of -40°C to +85°C and RoHS compliance, this sensor guarantees reliable performance in harsh conditions. Easy to install with tape and reel packaging, it’s the ideal choice for professionals seeking durability, precision, and regulatory compliance in their pressure sensing solutions. Purchase online now for fast delivery and expert support.
Get Bourns BPS310 today—built for precision and long-lasting durability in pressure sensing tasks.
Frequently Asked Questions
Where can I buy Bourns BPS310AD0P152DG?
You can click on the BUY or RFQ button to purchase BPS310AD0P152DG from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part BPS310AD0P152DG?
You can download the BPS310AD0P152DG datasheet or visit the Bourns website for support.
Who is the manufacturer of BPS310AD0P152DG?
Bourns
