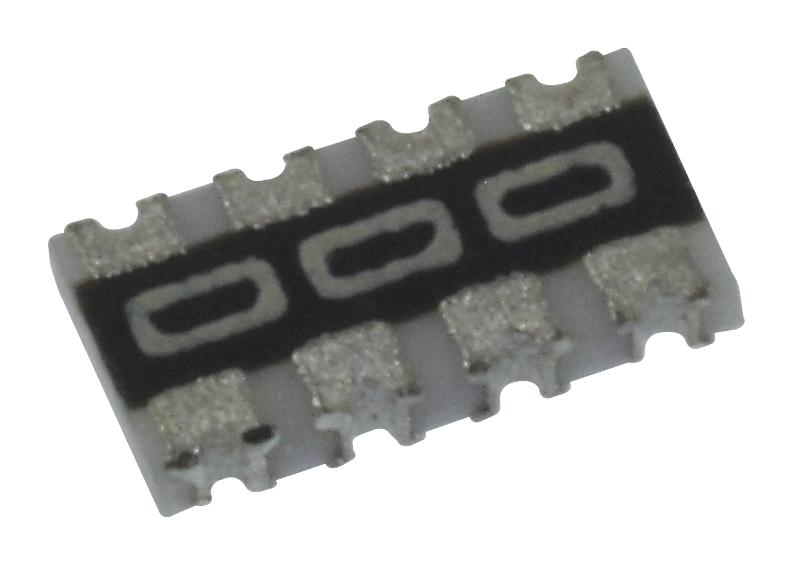

Bourns CAT10104J4LF Resistor Array
The Bourns chip resistor array features four isolated resistors in an 0804 package size, utilizing thick film resistive elements on high purity alumina substrate. Designed for electronic circuits, it offers resistance values from 10 ohms to 1 megohm in the E24 series, with resistance tolerance of ±5%. The array is RoHS compliant with tin-plated terminations and features a concave termination style. Suitable for surface-mount soldering processes, it provides reliable performance in industrial and electronic device applications, with a maximum working voltage of 25 V and operating temperature range from -55°C to +125°C.
Bourns CAT10104J4LF Resistor Array Specifications:
- Number of Elements: 4 (isolated)
- Package Size: 0804
- Resistance Range: 10 ohms to 1 megohm
- Resistance Tolerance: ±5%
- Power Rating per Resistor: 0.0625 W @ 70°C
- Package Power Rating: 0.250 W @ 70°C
- Operating Temperature Range: -55°C to +125°C
- Max. Working Voltage: 25 V
- Resistance Code: R for decimal, e.g., 4R7=4.7 ohms
- Construction: Thick film resistive element on high purity alumina substrate
- Terminations: Tin-plated, RoHS compliant
- Features: RoHS compliant, concave termination, suitable for soldering, in an easy-to-use tape reel
- Features: 4 isolated resistors, in E24 series, resistances from 10 ohms to 1 megohm
Buy the Bourns CAT10104J4LF U+2013 Reliable Resistor Array for Industrial Applications
Purchase the Bourns resistor array now to enjoy dependable performance in your electronic and industrial projects. Featuring four isolated resistors in a compact 0804 size, it offers resistance values from 10 ohms to 1 megohm with high precision and tolerance of ±5%. RoHS compliant with tin-plated terminations, this array ensures durability and ease of soldering. Ideal for surface-mount assembly, it delivers maximum reliability under operating temperatures from -55°C to +125°C. Order online today for quick delivery and consistent quality.
Order your Bourns Series CAT10104J4LF resistor array today and ensure your electronic projects benefit from high reliability and precise resistance values.
Frequently Asked Questions
Where can I buy Bourns CAT10104J4LF?
You can click on the BUY or RFQ button to purchase CAT10104J4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAT10104J4LF?
You can download the CAT10104J4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAT10104J4LF?
Bourns
