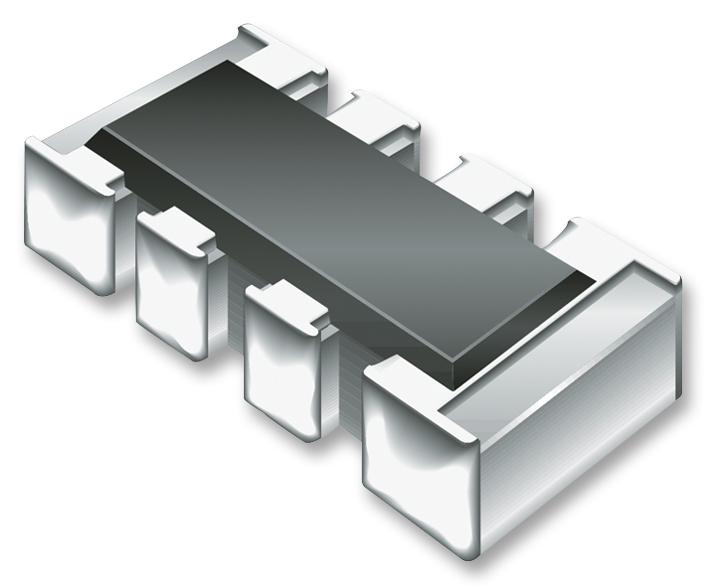

Bourns CAY10472J4LF Chip Resistor Array
The Bourns CAY10 series chip resistor arrays are designed for applications requiring multiple resistor elements in a small footprint. These arrays feature isolated resistors, offering flexibility in circuit design. They are available with 2 or 4 resistor elements and are RoHS compliant, suitable for a wide range of electronic devices and industrial applications. The convex termination style and resistance tolerance of ±5% ensure reliable performance in various soldering processes.
Bourns CAY10472J4LF Chip Resistor Array Specifications:
- Short Time Overload: ±2 % (Rated Voltage X 2.5, 5 seconds)
- Soldering Heat: ±1 % (260 °C ±5 °C, 10 seconds ±1 second)
- Temperature Cycling: ±1 % (125 °C (30 minutes) - normal (15 minutes) -30 °C(30 minutes)- normal(15 minutes))
- Moisture Load Life: ±3 % (1000 hours)
- Load Life: ±3 % (1000 hours)
- Power Rating @ 70 °C per Resistor: 0.0625 W
- Package Power Rating @ 70 °C: 0.250 W
- Resistance Tolerance: ±5 %
- Resistance Range (E24): 3 ohms - 1 megohm
- T.C.R.: 3 ohms ~ 9.1 ohms: ±500 ppm/°C, 10 ohms ~ 1 megohm: ±250 ppm/°C
- Max. Overload Voltage: 50 V
- Max. Working Voltage: 25 V
- Operating Temp. Range: -55 °C to +125 °C
- Rating Temperature: +70 °C
- Packaging: 10,000 pieces per reel
Buy the CAY10-472J4LF BOURNS Chip Resistor Array | myMectronic
Purchase the Bourns CAY10-472J4LF Chip Resistor Array securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy Bourns CAY10472J4LF?
You can click on the BUY or RFQ button to purchase CAY10472J4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAY10472J4LF?
You can download the CAY10472J4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAY10472J4LF?
Bourns
