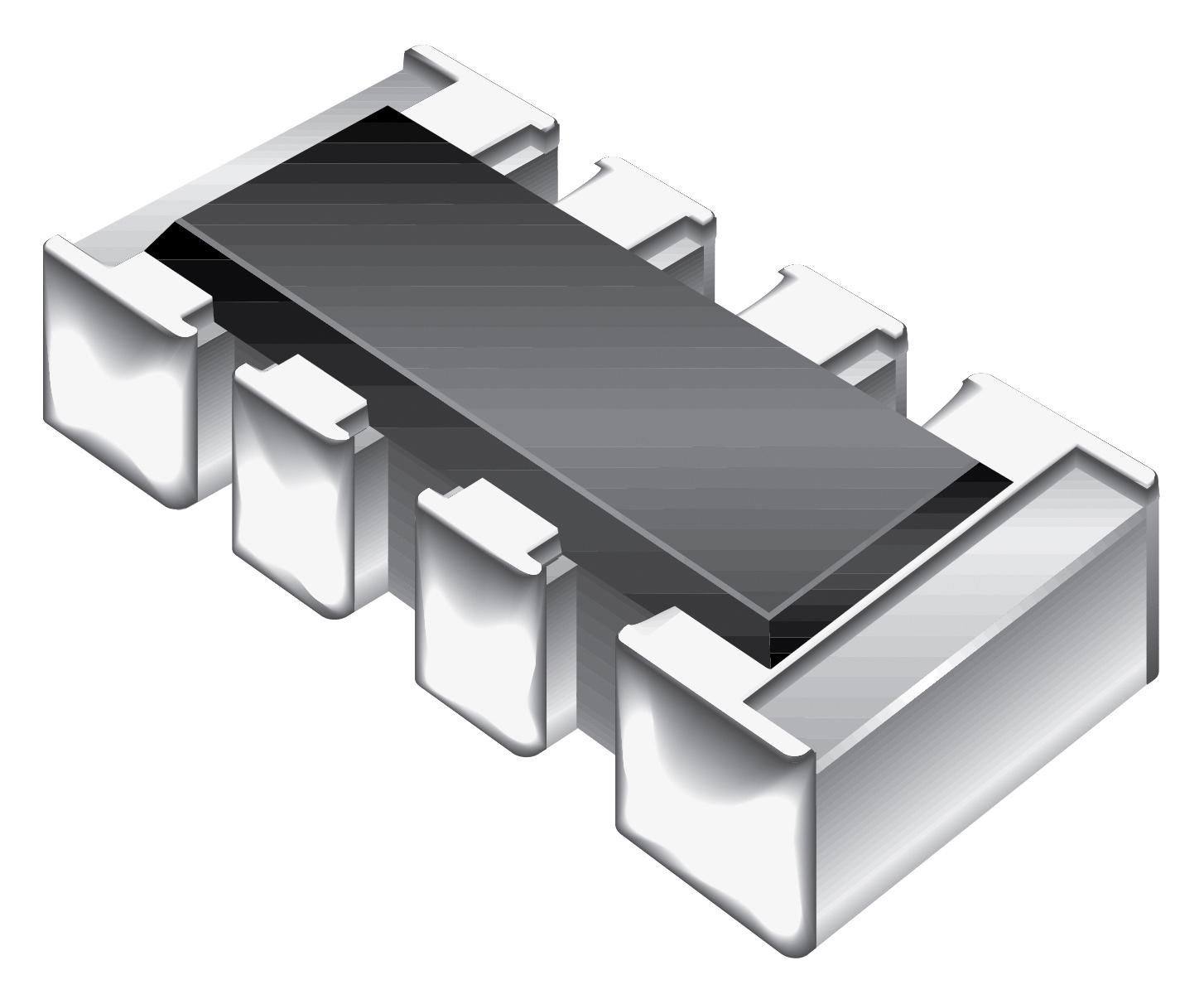

Bourns CAY16A2002F4LF Resistor Array
The CAY16A series are Thick Film Chip Arrays with four isolated resistors, RoHS compliant, and designed for reliable industrial and automotive applications. They feature resistance ranges from 3 Q to 1 M Q with tolerance options of 1% and 5%. The series offers high power ratings of 63 mW at 70°C, operating temperature from -55°C to +125°C, and are compliant with AEC-Q200 standards. They include tin-plated terminations, compact dimensions, and are suitable for automated soldering processes, making them ideal for compact electronic designs requiring precision resistor arrays.
Bourns CAY16A2002F4LF Resistor Array Specifications:
- Number of Elements: 4
- Power Rating @ 70°C: 63 mW
- Resistance Range: 3 Q to 1 M Q
- Resistance Tolerance: 1% or 5%
- Resistance TCR: 200 ppm/°C
- Maximum Overload Voltage: 100 V
- Maximum Working Voltage: 50 V
- Operating Temperature Range: -55°C to +125°C
- Storage Conditions: 5~35 °C, 40~75 % RH, 2 years
- Terminations: Tin-plated
- Package Width: 6.0 mm
- Soldering Profile: Peak 260°C for 20 sec
- Compliance: RoHS, AEC-Q200
- Vibration Resistance: 5 g for 20 min
- Mechanical Shock: 100 g, 6 ms
- Flammability: UL 94V-0
Buy the Bourns CAY16A2002F4LF – Reliable Resistor Arrays for Industrial Applications
Purchase the Bourns CAY16A2002F4LF resistor array online today and benefit from its high reliability, precise resistance values, RoHS compliance, and robust construction. Ideal for demanding industrial and automotive environments, this compact chip array ensures consistent performance with excellent thermal stability and adherence to strict standards. Its tin-plated terminations enable easy soldering, making it perfect for automated manufacturing processes. Secure your supply of these durable resistor arrays now for your high-performance electronic projects requiring accuracy and long-term durability.
Get Bourns CAY16A2002F4LF today—engineered for precision, resilience, and automotive-grade performance.
Frequently Asked Questions
Where can I buy Bourns CAY16A2002F4LF?
You can click on the BUY or RFQ button to purchase CAY16A2002F4LF from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CAY16A2002F4LF?
You can download the CAY16A2002F4LF datasheet or visit the Bourns website for support.
Who is the manufacturer of CAY16A2002F4LF?
Bourns
