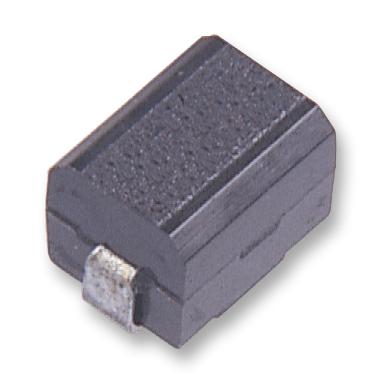

Bourns CM3225221R5KL Chip Inductor
The chip inductor series offers high resistance to heat and humidity, with accurate surface-mount dimensions suitable for various applications such as mobile phones, VCRs, and FDD. Operating within -40°C to 125°C, these inductors feature ferrite cores, enamelled copper wire, and epoxy resin enclosures. They support inductance values from 0.12 to 150 pH, with excellent resistance to soldering heat and mechanical shocks. Packaged in reels with 2,000 units per reel, they comply with RoHS directives and are ideal for high-frequency and RF circuits in consumer electronics and industrial uses.
Bourns CM3225221R5KL Chip Inductor Specifications:
- Inductance range: 0.12 to 150 pH
- Operating Temperature: -40°C to 125°C
- Storage Temperature: -40°C to 125°C
- Core Material: Ferrite
- Wire Material: Enamelled copper
- Enclosure: Epoxy resin
- Terminal Finish: Sn
- Resistance to Soldering Heat: 245°C, 5 seconds
- Resistance to mechanical shock and pressure
- RoHS compliant
- Maximum resistance to moisture and humidity
- Soldering profile: Peak temperature 250°C, max 20-40 sec above 245°C
- Packaging: 2000 pcs. per reel
- Rated current support for various inductance values
- Dimensions: Approx. 2.9 mm length
- Applications include mobile phones, cellular devices, VCRs, FDD, and other RF circuits
- Compliance with industry standards for reliability in electronic components
Buy the Bourns CM3225221R5KL – Reliable Chip Inductor for Industrial Applications
Experience high reliability with the Bourns CM3225221R5KL chip inductor, designed for industrial and consumer electronics. It features wide inductance options from 0.12 to 150 pH, operating over -40°C to 125°C, with RoHS compliance and excellent resistance to heat, humidity, and mechanical shocks. Packaged in reels of 2,000 units, these surface-mount inductors are perfect for mobile phones, RF circuits, and FDD systems. Built with ferrite cores, enamelled copper wire, and epoxy resin, they ensure durability and optimal performance in demanding environments.
Order your Bourns Series CM3225221R5KL chip inductor today and ensure reliable performance in high-frequency circuits and RF systems.
Frequently Asked Questions
Where can I buy Bourns CM3225221R5KL?
You can click on the BUY or RFQ button to purchase CM3225221R5KL from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part CM3225221R5KL?
You can download the CM3225221R5KL datasheet or visit the Bourns website for support.
Who is the manufacturer of CM3225221R5KL?
Bourns
