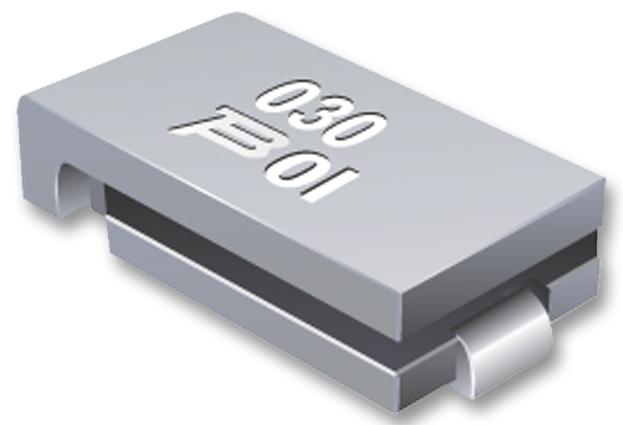

Bourns MFSM1002 PTC Resettable Fuse
The MF-SM series are PTC resettable fuses designed for automotive and electronic applications. These surface-mount devices offer reliable overcurrent protection with compliant RoHS and halogen-free features. Capable of operating from -40°C to +85°C and with a trip time of just seconds at specified currents, these fuses endure harsh environmental conditions, including thermal shocks, humidity, and vibration. Packaged per industry standards, they prevent damage to circuits across various low-voltage systems, making them ideal for automotive, computer, and general electronics protection.
Bourns MFSM1002 PTC Resettable Fuse Specifications:
- Operating Temperature: -40 °C to +85 °C
- Maximum Device Surface Temperature in Tripped State: 125°C
- Resistance Change after Aging: +85 °C, 1000 hours, +5 %
- Humidity Aging Resistance: +85 °C, 85 % R.H., 7 days, +5 %
- Thermal Shock Resistance: MIL-STD-203F, Method 1076, ±10 %
- Vibration Resistance: MIL-STD-883C, Method 2067.1, Condition A
- UL Certification: E174545
- TUV Certification: R 02057213
- RoHS Compliant and Halogen-Free ( Bromine and Chlorine ≤900 ppm, Total ≤1500 ppm )
- Reflow Soldering: IR, vapor phase oven, hot air oven; no wave soldering
- Solder Reflow Max Paste Thickness: 0.25 mm
- Storage: In original sealed packaging, max 40°C and 70% RH, indefinite shelf life
- Designed for low voltage power supplies and load protection in automotive, computer, and electronics systems
- Physical Dimensions Vary per model, generally about 6 mm height, tape & reel packaging for automated placement
Buy the Bourns MF-SM – Reliable PTC Resettable Fuse for Industrial Applications
Protect your electronic and automotive systems with the Bourns MF-SM series PTC resettable fuse. These high-quality surface-mount devices are RoHS compliant and halogen free, designed to withstand harsh environmental conditions such as high temperature, humidity, and vibration. With fast trip times and reliable endurance testing, they ensure continuous circuit protection and circuit longevity. Ideal for low-voltage power supplies in vehicles, computers, and general electronics, these fuses offer easy integration with industry-standard packaging for convenience and efficiency.
Order your Bourns MF-SM100 series automotive resettable fuse today and enhance your vehicle's electrical safety with dependable overcurrent protection.
Frequently Asked Questions
Where can I buy Bourns MFSM1002?
You can click on the BUY or RFQ button to purchase MFSM1002 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part MFSM1002?
You can download the MFSM1002 datasheet or visit the Bourns website for support.
Who is the manufacturer of MFSM1002?
Bourns
