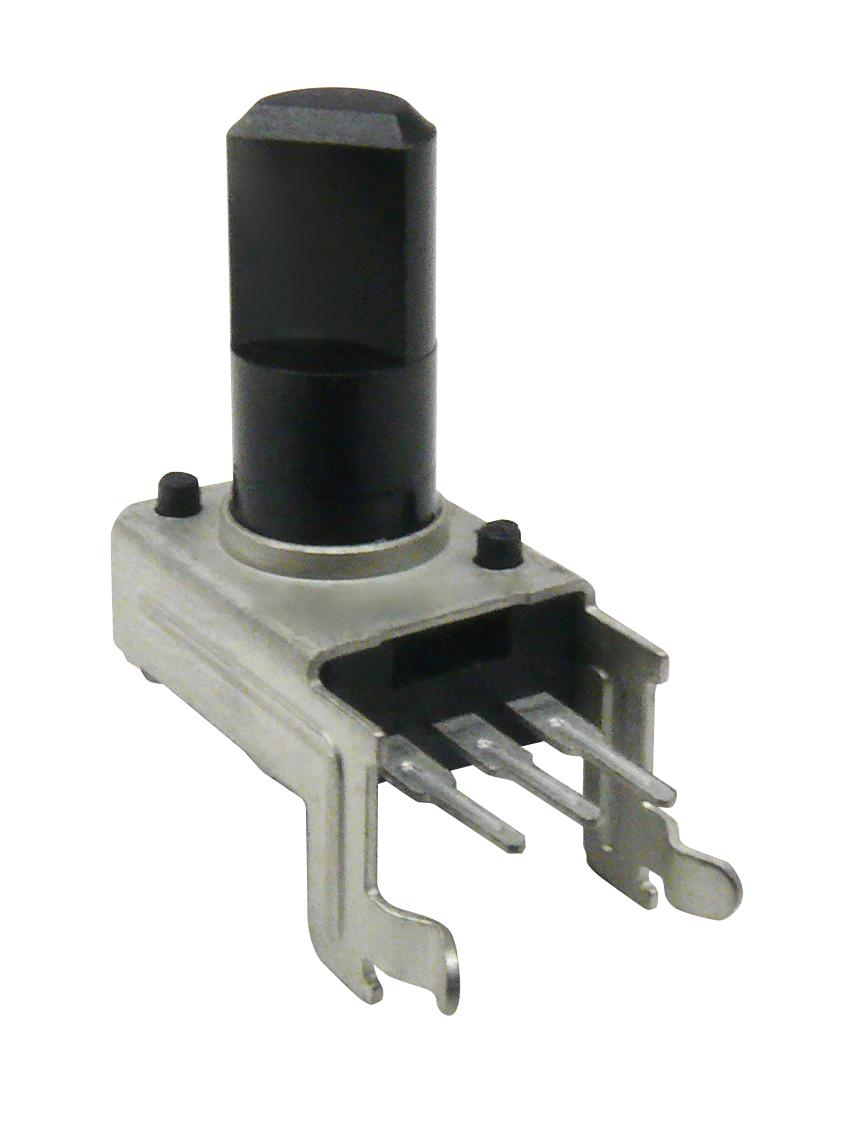

Bourns PTV09A8025UB103 Precision Potentiometer
The Bourns PTVO9 Series 9 mm potentiometer offers precise linear and audio taper control, suitable for commercial communications, portable electronics, and audio equipment. Features include a wide resistance range from 1K ohms to 1 M ohms, RoHS compliance, various mounting options, and a center detent feature for positional accuracy. Designed to operate from -10°C to +50°C with a maximum power rating of 0.05 watt and maximum voltage of 20 VDC, this durable component provides reliable performance in compact form factors essential for modern electronic applications.
Bourns PTV09A8025UB103 Precision Potentiometer Specifications:
- Resistance Range: 1K ohms to 1 M ohms
- Resistance Tolerance: ±20%
- Residual Resistance: 500 ohms or +1 % max.
- Operating Temperature: -10°C to +50°C
- Power Rating: 0.05 watt
- Maximum Voltage: 20 VDC, 50 VAC
- Mechanical Angle: 280° ±10°
- Rotational Torque: 10 to 100 g-cm
- Stop Strength: 2 kg-cm min
- Rotational Life: 10,000 cycles
- Soldering Condition: Max 300°C within 3 seconds
- Hardware: Flat washer and hex nut supplied with bushing version
- Shaft Lengths: 15mm, 20mm, 25mm, 30mm
- Mounting Styles: Horizontal/Rear, Vertical/Side with bushing or bushingless
- Detent: Center or none
- Resistance Series: Followed by Curve Number, Resistance Code (e.g., 202 for 2K ohms)
- RoHS compliant
Buy the Bourns Series PTVO9 Potentiometer: PTV09A8025UB103
Experience reliable control with the Bourns PTVO9 Series Precision Potentiometer, designed for electronics requiring accurate adjustment and durable operation. Featuring multiple mounting styles, resistance ranges up to 1 M ohms, and RoHS compliance, it adapts seamlessly to communication devices, audio equipment, and consumer electronics. Its compact 9 mm size, various shaft lengths, and detent options provide flexibility for design engineers. Trust Bourns quality for long-term performance in demanding applications. Purchase online today for dependable control solutions.
Get Bourns PTVO9A8025UB103 today—built for precision and long-lasting durability in compact electronic control applications.
Frequently Asked Questions
Where can I buy Bourns PTV09A8025UB103?
You can click on the BUY or RFQ button to purchase PTV09A8025UB103 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PTV09A8025UB103?
You can download the PTV09A8025UB103 datasheet or visit the Bourns website for support.
Who is the manufacturer of PTV09A8025UB103?
Bourns
