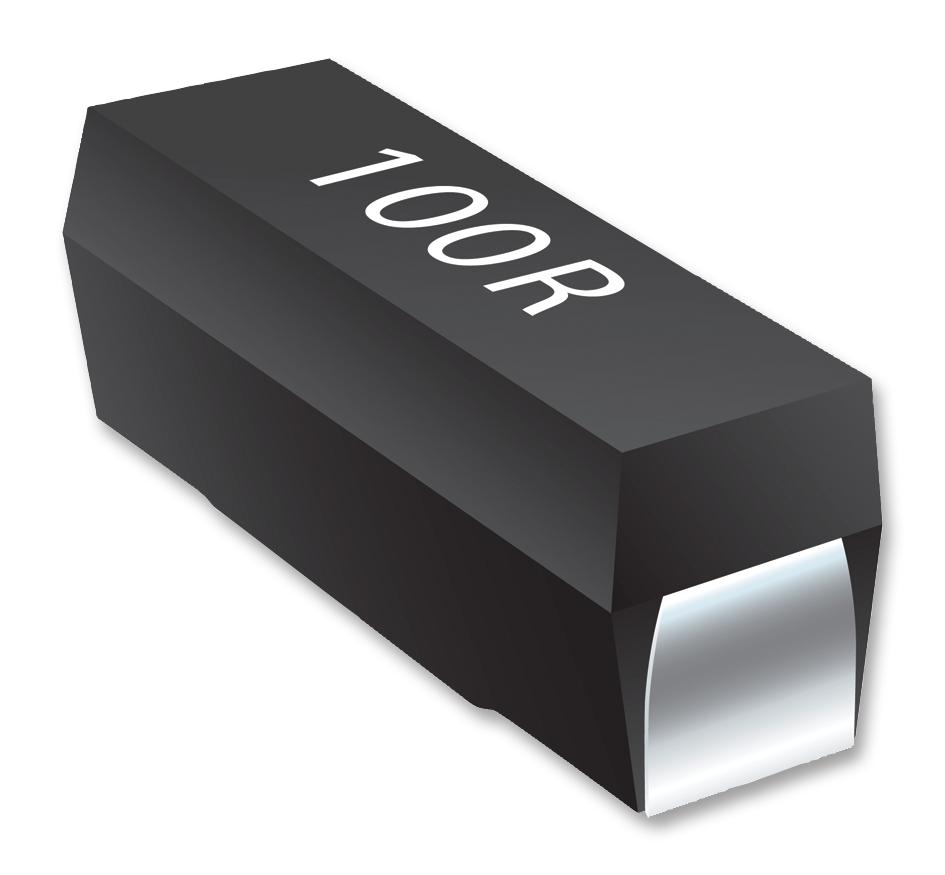

Bourns PWR4318W1000JE High Power Resistor
The PWR4318W1000JE is a high-power surface mount wirewound resistor designed for applications demanding excellent pulse power and surge capabilities, such as telecommunications, industrial equipment, and medical devices. It offers robust performance with power ratings up to 20W, resistance range from 0.12Ω to 8kΩ, and tight tolerance options. Crafted with epoxy resin body and tin-plated copper leads, it withstands extreme temperatures from -55°C to +155°C, featuring superior electrical and environmental durability suitable for demanding electronic environments.
Bourns PWR4318W1000JE High Power Resistor Specifications:
- Power Rating: 20W
- Resistance Range: 0.12Ω to 8kΩ (E24 values)
- Tolerance: 0.5%, 1%, 5%
- Temperature Coefficient: 0.1-0.99.2 ppm/°C
- Operating Temperature: -55°C to +155°C
- Maximum Voltage: Rated power x Resistance
- Body Material: Epoxy resin
- Lead Frame: 100% Sn plated copper
- Thermal Shock: -55°C to +150°C, 5 cycles
- Solderability: 90% contact coverage at 260°C ±5°C for 5s
- Resistance to Solder Heat: Immersion at 260°C ±5°C for 5s
- Dielectric Strength: >500V for 1 min
- Insulation Resistance: >1000 GΩ at 500V
- High Temp Exposure: 175°C for 250 hours
- Low Temp Exposure: -65°C for 24 hours
Buy the Bourns PWR4318W1000JE – Reliable High-Power Surface Mount Resistor for Industrial Applications
Purchase the Bourns high-power surface mount resistor PWR4318W1000JE online today. Designed for reliable performance in demanding environments, it features a 20W power rating, resistance from 0.12Ω to 8kΩ, and excellent surge handling capacity. Ideal for industrial, telecom, and medical applications, this resistor offers exceptional thermal stability, resistance to harsh conditions, and precise electrical characteristics. Secure your supply of this durable, RoHS-compliant component now for dependable circuit performance.
Order your Bourns Series PWR4318W1000JE today and enhance your electronic projects with a robust high-power resistor capable of withstanding surge and pulse demands.
Frequently Asked Questions
Where can I buy Bourns PWR4318W1000JE?
You can click on the BUY or RFQ button to purchase PWR4318W1000JE from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part PWR4318W1000JE?
You can download the PWR4318W1000JE datasheet or visit the Bourns website for support.
Who is the manufacturer of PWR4318W1000JE?
Bourns
