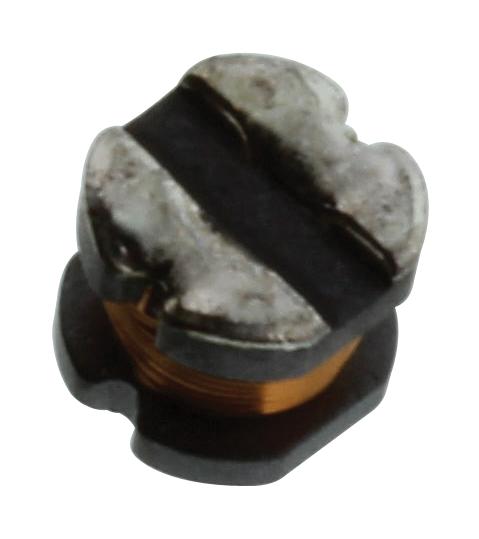

Bourns SDR1006120ML Power Inductor
The SDR1006-120ML is a high-quality SMD power inductor designed for use in DC/DC converters, power supplies, and portable electronic devices such as LCD TVs, camcorders, and car radios. Its compact 9.8 mm diameter size makes it suitable for space-constrained applications while offering excellent inductance, rated current, and thermal performance. RoHS compliant, it ensures environmentally responsible manufacturing. This inductor provides reliable electrical performance with low resistance and high saturation current, making it ideal for modern electronic circuits requiring efficiency and miniaturization.
Bourns SDR1006120ML Power Inductor Specifications:
- Inductance: 120 µH
- Test Frequency: 1 KHz
- SRF: 15 MHz
- Q factor: 18
- DCR: 0.040 Ω
- Rated Current: 0.048 A
- Operating Temperature: -40°C to +125°C
- Soldering Temperature: 260°C for 5 seconds
- Material: Ferrite core with copper wire
- Dimensions: Diameter 9.8 mm, height approx. 6.4 mm
- RoHS compliant: Yes
- Packaged in tape and reel, 800 pcs per reel
- Maximum soldering profile: 260°C for 5 sec
- Features include high current handling, low resistance, and reliable performance in compact size
Buy the Bourns Series Power Inductor: SDR1006120ML
Enhance your electronic assemblies with the Bourns SDR1006120ML power inductor. Designed for high efficiency in DC/DC conversion and power supplies, its compact size fits easily into space-constrained environments such as LCD TVs and portable communication devices. RoHS compliant, it offers excellent thermal and electrical properties, including low resistance and high saturation current. Order online now to ensure fast delivery and reliable performance in your next project, benefiting from proven quality and compatibility with modern electronics.
Buy Bourns SDR1006120ML now and experience unmatched reliability and high-performance power inductance for your electronic projects.
Frequently Asked Questions
Where can I buy Bourns SDR1006120ML?
You can click on the BUY or RFQ button to purchase SDR1006120ML from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SDR1006120ML?
You can download the SDR1006120ML datasheet or visit the Bourns website for support.
Who is the manufacturer of SDR1006120ML?
Bourns
