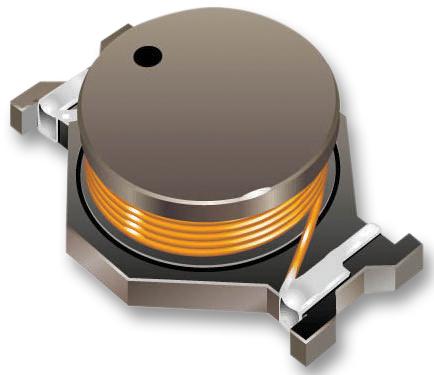

Bourns SDR2207101KL Power Inductor
The SDR2207 Series by Bourns are high-performance SMD power inductors designed for efficient power management in electronic devices. These inductors feature low height of only 7.0 mm, high current capacity up to 16 amps, and are RoHS compliant. Suitable for portable communications, LCD TVs, car radios, and DC/DC converters, they offer excellent inductance stability at 100 KHz, with test voltages of 0.1V. Their compact design ensures easy integration into space-constrained applications, providing reliable power regulation with high inductance values ranging from 0.78 µH to 1000 µH. Operating temperatures from -40°C to +125°C ensure durability across diverse environments.
Bourns SDR2207101KL Power Inductor Specifications:
- Inductance Range: 0.78 µH to 1000 µH
- Test Voltage: 0.1V at 100 KHz
- Maximum Current: Up to 16 A
- Operating Temperature: -40°C to +125°C
- Reflow Soldering: Max 250°C for 10 sec
- RoHS Compliant
- Dimensions: Height 7.0 mm, various diameters from 7 mm to 6.8 mm
- Material: Ferrite core with enameled copper wire
- Impedance: Varies with inductance and frequency
- Packaging: 250 pcs per reel
- Typical SRF: 20-50 MHz depending on inductance
- Application: DC/DC converters, portable electronics, LCD TVs, car radios
Buy the Bourns SDR2207 – Reliable Power Inductors for Industrial Applications
Discover the precision and reliability of the Bourns SDR2207 series power inductors, ideal for compact, high-current power supplies and DC/DC conversion. These inductors support currents up to 16 amps, with a low profile of just 7 mm height, making them perfect for space-constrained applications like portable communications, LCD TVs, and car radios. RoHS compliant, they provide stable inductance at 100 KHz, with broad inductance values from 0.78 µH to 1000 µH. Ensure your electronic designs operate efficiently and reliably by ordering these high-quality inductors online today.
Order your Bourns Series SDR2207 power inductors today and give your electronic projects the dependable quality they deserve, ensuring efficient power management.
Frequently Asked Questions
Where can I buy Bourns SDR2207101KL?
You can click on the BUY or RFQ button to purchase SDR2207101KL from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SDR2207101KL?
You can download the SDR2207101KL datasheet or visit the Bourns website for support.
Who is the manufacturer of SDR2207101KL?
Bourns
