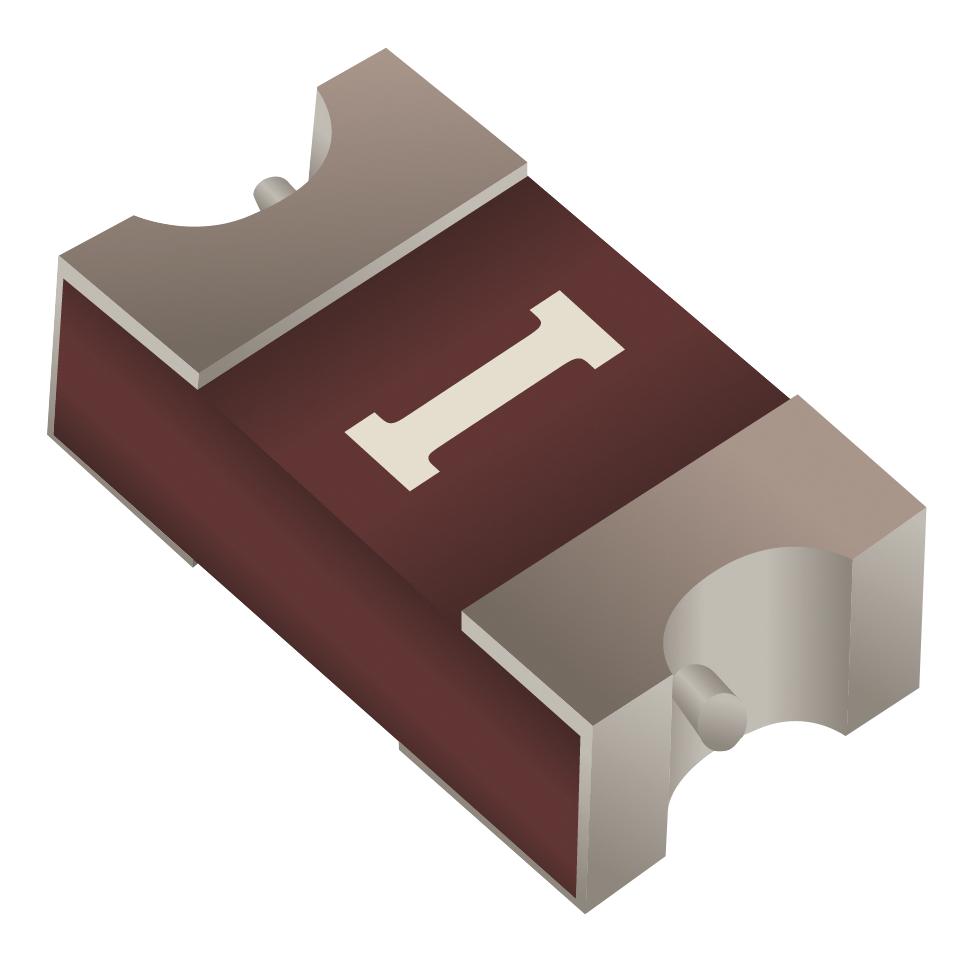

Bourns SF1206S1500W2 Surface Mount Slow Blow Fuse
The Slow Blow Wire Core Surface Mount Fuses from the SinglFuse SF-1206SxxxW Series provide reliable overcurrent protection for electronic circuits. Designed with a 3216 (EIA 1206) footprint, these UL 248-14 listed fuses feature a wire core SMD design, RoHS compliance, and halogen-free construction. Suitable for applications such as LCD monitors, low voltage lighting, backlight drivers, industrial controllers, set-top boxes, DC/DC converters, and ultrabooks, they are ideal for high-density, automated assembly, ensuring circuit safety and durability under various operating conditions.
Bourns SF1206S1500W2 Surface Mount Slow Blow Fuse Specifications:
- Footprint: 3216 (EIA 1206)
- Fuse Blow Type: Slow Blow
- Rated Current: 1.50 A to 15.00 A
- Resistance: 0.050 Ω to 0.0035 Ω depending on model
- Voltage Rating: DC 65 V, 110 V, or 250 V depending on model
- Operating Temperature: -55°C to +125°C
- Moisture Sensitivity Level: Level 2
- Solder Reflow Profile: Preheat 150°C-200°C for 60-120 sec, Peak 217°C
- Packaging: Tape and Reel for automated assembly, 3,500 pieces per reel
- Certifications: UL 248-14 listed, RoHS compliant, Halogen free
Buy the Buy Bourns SF1206S1500W2 Part Number SF1206S1500W2 Online
Enhance your electronic projects with Bourns SF1206S1500W2 surface mount slow blow fuses. Designed for high-density automation, these UL listed, RoHS compliant fuses provide overcurrent protection for LCD monitors, low voltage lighting, backlight drivers, and industrial controllers. Easy to install with tape and reel packaging, they ensure circuit safety and durability under various conditions. Trust Bourns for quality and reliability in your electronic components. Purchase online now to ensure optimal circuit protection and long-term performance.
Buy Bourns SF1206S1500W2 now and experience unmatched reliability and performance in electronic circuit protection with high-quality surface mount fuses.
Frequently Asked Questions
Where can I buy Bourns SF1206S1500W2?
You can click on the BUY or RFQ button to purchase SF1206S1500W2 from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SF1206S1500W2?
You can download the SF1206S1500W2 datasheet or visit the Bourns website for support.
Who is the manufacturer of SF1206S1500W2?
Bourns
