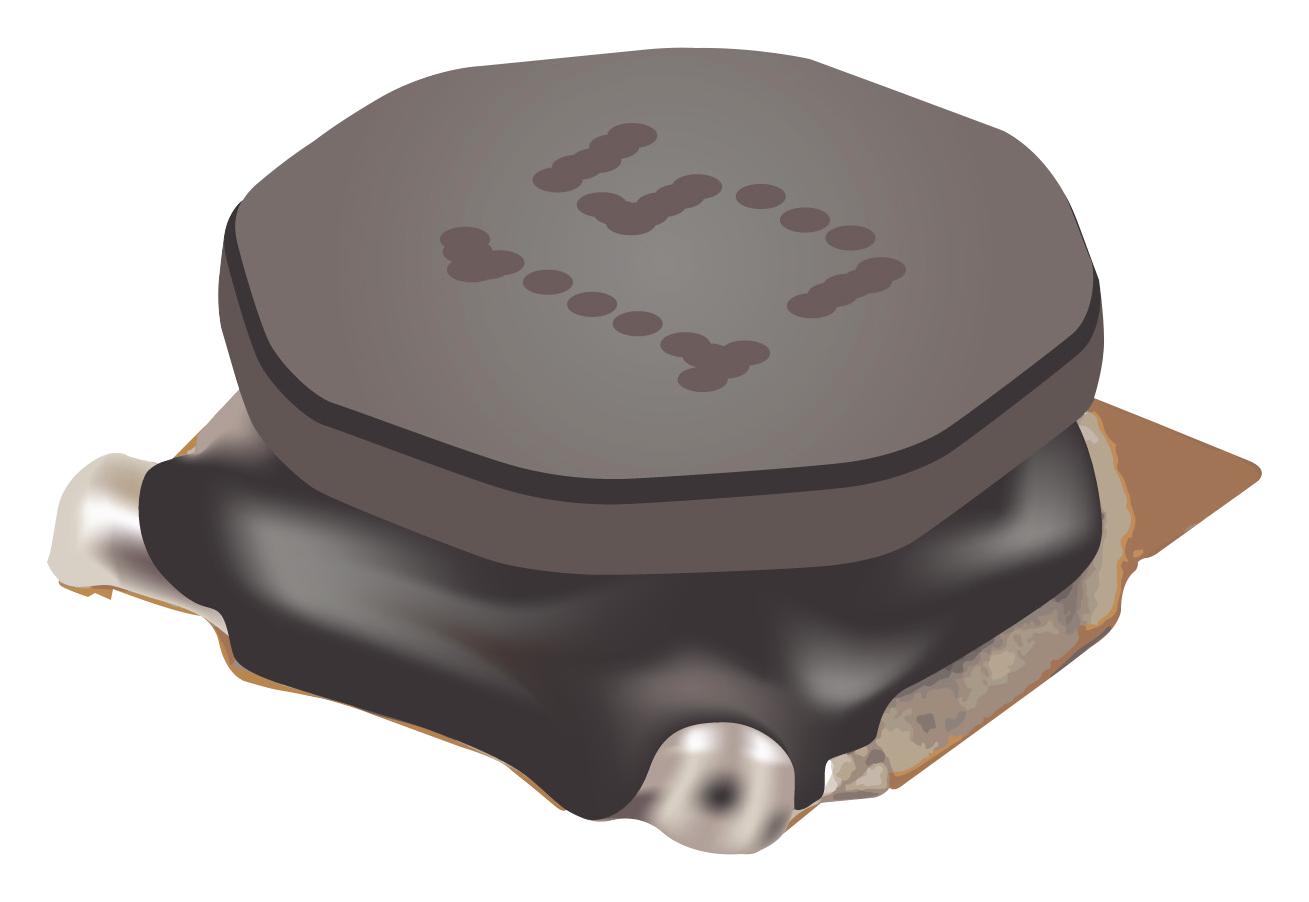

Bourns SRN4018TA1R5M Power Inductor
The SRN4018TA series features semi-shielded power inductors designed for automotive, digital video, lighting, and power supply applications. These inductors operate within a temperature range of -40°C to +125°C and feature inductance values from 1 to 150 µH. They are RoHS compliant and halogen-free, with materials including ferrite cores, enameled copper wire, and Sn terminal finish. These inductors support high rated currents up to 3.2A, with detailed specifications including inductance, SRF, DCR, Irms, and Isat for efficient power management and minimal electromagnetic interference, suitable for high-performance electronic designs.
Bourns SRN4018TA1R5M Power Inductor Specifications:
- Operating Temperature: -40°C to +125°C
- Inductance Range: 1 to 150 µH
- Rated Current up to 3.2A
- Material: Ferrite core, Enameled copper wire, Sn terminal finish
- RoHS compliant and halogen free
- SRF at 100kHz: 10-40 MHz depending on model
- DCR: 0.027-0.0585 Ω
- Size: Based on model, detailed dimensions available in datasheet
- Soldering Profile: Preheating at 260°C, maximum duration 10 sec, reflow temp 245°C, cooling naturally
- Packaging: 3000 pcs per reel
Buy the Buy Bourns SRN4018TA Part Number SRN4018TA1R5M Online
Order the Bourns SRN4018TA series power inductors online today to ensure your electronic projects benefit from high-quality, RoHS-compliant components. With rated currents up to 3.2A, wide inductance range from 1 to 150 µH, and a operating temperature of -40°C to +125°C, these inductors are ideal for automotive, lighting, and digital video applications. Secure fast delivery, competitive pricing, and trusted quality, and take your power management solutions to the next level by purchasing online now.
Buy Bourns SRN4018TA1R5M now and experience unmatched reliability and high-current performance in your power supply designs.
Frequently Asked Questions
Where can I buy Bourns SRN4018TA1R5M?
You can click on the BUY or RFQ button to purchase SRN4018TA1R5M from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRN4018TA1R5M?
You can download the SRN4018TA1R5M datasheet or visit the Bourns website for support.
Who is the manufacturer of SRN4018TA1R5M?
Bourns
