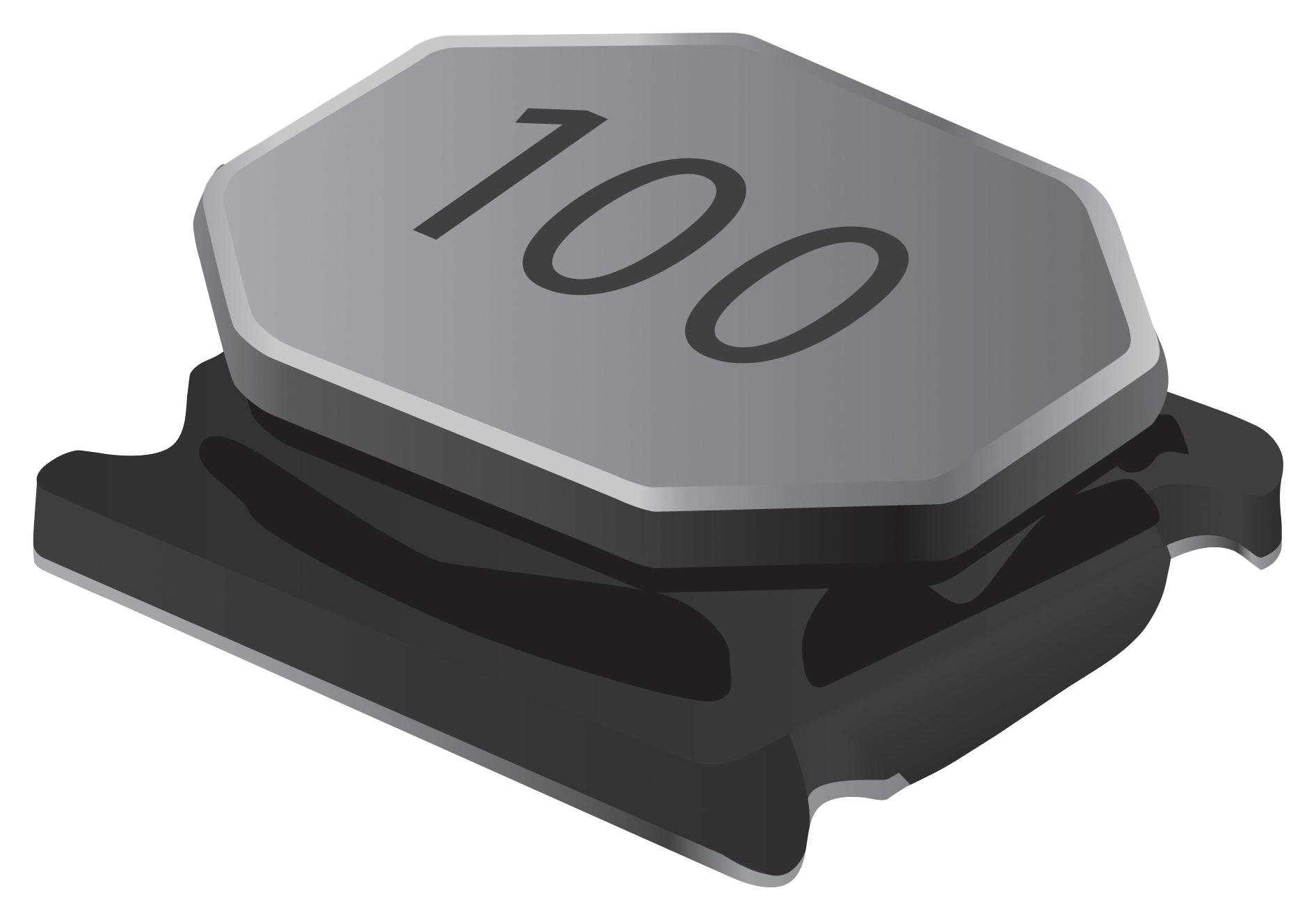

Bourns SRN5020TA1R5Y Power Inductor
The SRN5020TA Series power inductors are semi-shielded components designed for high-current applications such as DC/DC converters and power supplies. Made with ferrite cores and enameled copper wire, these inductors operate in temperatures from -55°C to 125°C, withstanding moisture and thermal stress. They feature RoHS compliance, halogen-free design, and are packaged on 2500-piece reels for automated assembly. The series offers inductance values from 1 to 47 microhenries, with rated currents up to 4.1 A, making them reliable for demanding electronic circuits requiring efficient energy storage and noise filtering.
Bourns SRN5020TA1R5Y Power Inductor Specifications:
- Inductance range: 1 to 47 μH
- Rated current: up to 4.1 A
- Operating temperature: -55°C to 125°C
- Storage temperature: -55°C to 125°C
- Core material: Ferrite
- Wire: Enameled copper
- Terminal finish: Sn (tin)
- Coating: Magnetic epoxy resin
- Packaging: 2500 pieces per reel
- Dimensions: Length varies with model, typical diameter approximately 8 mm
- RoHS compliant and halogen free
- Soldering profile: Reflow with maximum preheat 260°C for 10 sec, reflow peak 245°C for 20-40 sec, up to 3 times
- Compliance: AEC-Q200
Buy the Bourns Series SRN5020TA Inductor: SRN5020TA1R5Y
Purchase the Bourns SRN5020TA series power inductor online now—designed for demanding power supply and filtering applications. With inductance values up to 47 microhenries and rated currents of 4.1 A, these components ensure efficient energy storage and noise suppression. Made with ferrite core and enameled copper wire, they withstand operating temperatures up to 125°C and are RoHS compliant. Packaged on 2500-piece reels for ease of automation, these inductors are ideal for industrial and consumer electronics requiring durability and high performance.
Get Bourns SRN5020TA1R5Y today—built for high current and reliable performance in power supplies and DC/DC converters.
Frequently Asked Questions
Where can I buy Bourns SRN5020TA1R5Y?
You can click on the BUY or RFQ button to purchase SRN5020TA1R5Y from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRN5020TA1R5Y?
You can download the SRN5020TA1R5Y datasheet or visit the Bourns website for support.
Who is the manufacturer of SRN5020TA1R5Y?
Bourns
