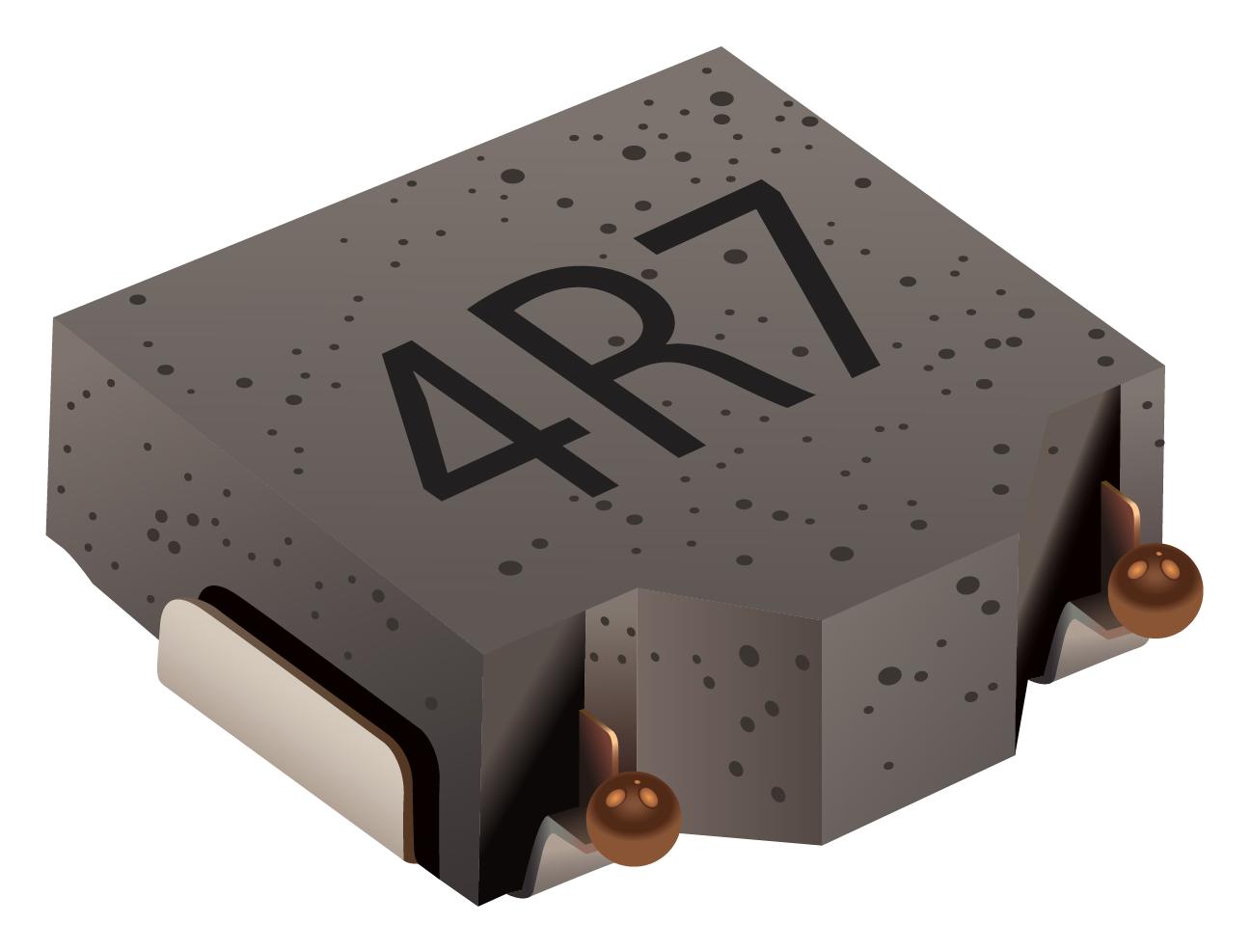

Bourns SRP04101R5K Power Inductor
The shielded power inductor series features high saturation current, low buzz noise, RoHS compliance, halogen-free design, and flat wire construction. Designed for reliable performance in high-frequency industrial applications, these inductors utilize a metal alloy powder core and enameled copper wire, offering excellent thermal stability and efficiency. They are suitable for power supply smoothing, filtering, and energy storage in compact electronic devices, ensuring durable operation at operating temperatures from -40°C to +125°C. Ideal for applications demanding high current capacity and minimal noise, these inductors meet stringent environmental standards and industry certifications.
Bourns SRP04101R5K Power Inductor Specifications:
- Inductance range: 0.47 µH to 10.0 µH
- Q factor: 10 at 100 kHz/1V
- Self-resonant frequency: 16 MHz to 350 MHz
- Saturation current: 16 A to 52 A
- Rated current: 16 A to 52 A
- DC resistance: 2.52 mΩ to 35.3 mΩ
- Operating temperature: -40°C to +125°C
- Body dimensions: approximately 4.10 mm x 4.10 mm
- Core material: Metal alloy powder
- Wire: Enameled copper
- RoHS compliant and halogen free
- Peak Temperature during soldering: 260°C max
- Maximum peak temperature duration: 30 sec.
- Storage temperature: -40°C to +125°C
- Moisture sensitivity level: Level 1
- Package: Reels with 4000 pcs
- Material finish: Sn (tin)
Buy the Bourns SRP0410 – Reliable Power Inductors for Industrial Applications
Discover the high-quality Bourns Series SRP0410 power inductor, designed for demanding industrial applications. Featuring RoHS compliance, halogen-free materials, high saturation current, and low noise, these inductors deliver exceptional reliability and thermal stability. Perfect for power supply filtering, energy storage, and noise suppression, they operate efficiently within a temperature range of -40°C to +125°C. With a compact design, they facilitate easy integration into electronic assemblies, ensuring your project benefits from durable, high-performance components available for quick online purchase.
Order your Bourns Series SRP0410 high-current shielded power inductor today and ensure reliable performance in your industrial electronics projects.
Frequently Asked Questions
Where can I buy Bourns SRP04101R5K?
You can click on the BUY or RFQ button to purchase SRP04101R5K from an authorized Bourns distributor.
How do I troubleshoot issues or seek technical support for part SRP04101R5K?
You can download the SRP04101R5K datasheet or visit the Bourns website for support.
Who is the manufacturer of SRP04101R5K?
Bourns
