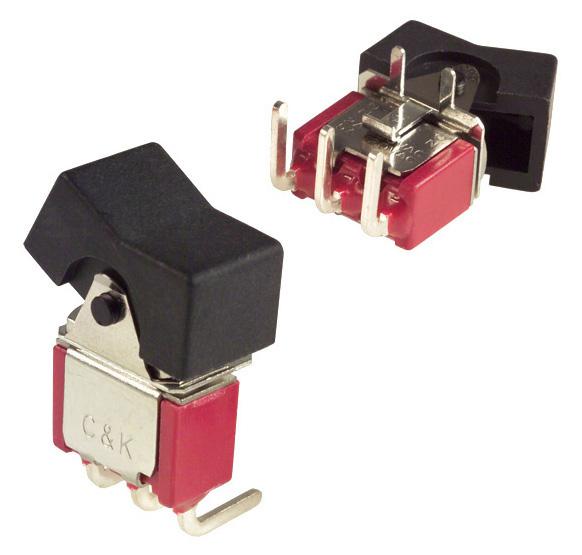

C&K COMPONENTS 7101J1AQE2 Miniature Switch
Miniature rocker and lever switches ideal for telecommunications, instrumentation, and medical equipment applications. Features multi-pole, multi-position options, epoxy terminal seal compatible with bottom wash cleaning, RoHS compliant materials, and a variety of actuator and termination choices for reliable performance in demanding environments. Constructed with durable nylon, stainless steel, brass, and copper alloys, these compact switches offer high electrical life, exceptional contact resistance, and insulation resistance, suitable for panel and PCB mounting. The 7000 series combines versatility, durability, and compliance, making it suitable for diverse industrial control and automation needs.
C&K COMPONENTS 7101J1AQE2 Miniature Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC/DC, Q contact: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 100,000 cycles for models 7001 and UX1; 40,000 cycles for others
- Contact Resistance: Below 10 mΩ initial @ 2-4 VDC, 100 mA
- Insulation Resistance: ≥ 10^9 Ω
- Dielectric Strength: Minimum 1000 Vrms @ sea level
- Operating Temperature: -30°C to 85°C
- Material: Case—Glass filled nylon 6/6 or DAP, Actuator—Nylon, Frame—Nylon or spring steel, Bushings—Brass or zinc, Housing—Stainless steel
- Terminal Seal: Epoxy, Hardware: Brass screws/nuts, stainless steel lockwashers, nylon standoffs
- Mounting: Panel, PCB, snap-in, right-angle, vertical, V-brackets, various panel thickness options (0.047 to 0.125 inches)
Buy the Buy Beem Miniature Switch Part Number 7101J1AQE2 Online
Discover the convenience of ordering the Beem series 7000 miniature switch model 7101J1AQE2 online. Designed for durability and versatility, this switch features epoxy terminal seals compatible with bottom wash cleaning, RoHS compliance, and a broad range of actuator options to suit various applications. Made with high-quality materials like nylon, brass, and stainless steel, it ensures long operational life and reliable electrical performance. Perfect for telecommunications, instrumentation, and medical equipment, it provides dependable switching for demanding industrial environments. Order today for fast delivery and expert support.
Order your Beem Series 7000 miniature switch with model 7101J1AQE2 today and enhance your control panels with reliable, compact switching solutions.
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7101J1AQE2?
You can click on the BUY or RFQ button to purchase 7101J1AQE2 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7101J1AQE2?
You can download the 7101J1AQE2 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7101J1AQE2?
C&K COMPONENTS
