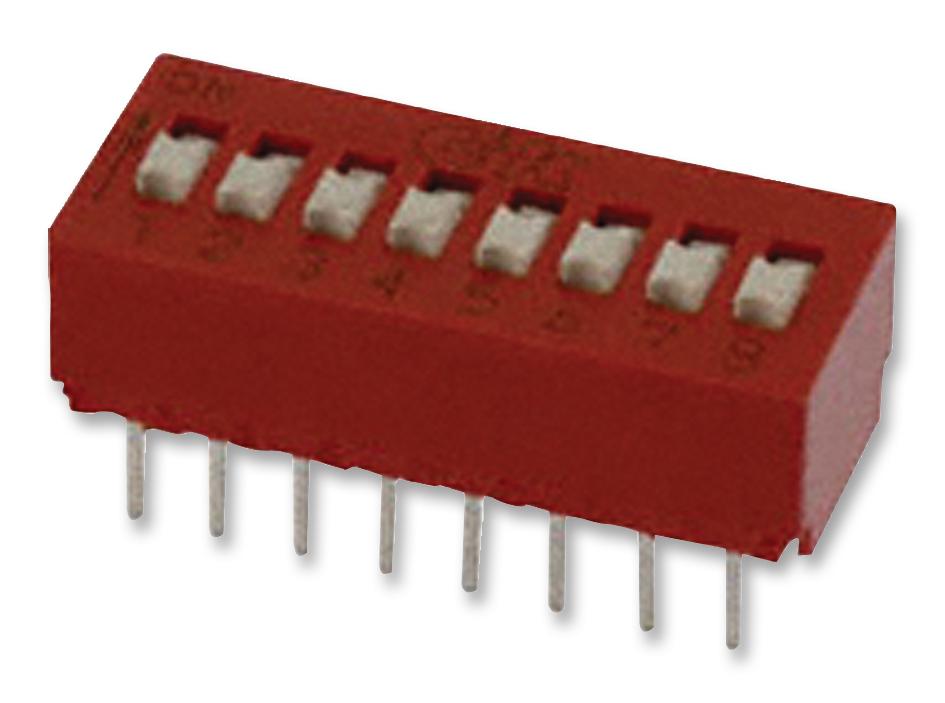

C&K COMPONENTS BD08 Full Profile DIP Switch
The BD Series standard profile DIP switches are reliable, open-base, solder-washable switches suitable for industrial control address setting, logic switching for computers, and function control applications. Featuring an extended actuator for easy operation, these switches have a full profile design with SPST function options, high durability with 10,000 life cycles, and a temperature range of -40°C to 85°C. Constructed with flame-retardant materials, they offer excellent electrical insulation, low contact resistance, and robust shock and vibration resistance, ensuring dependable performance in demanding environments.
C&K COMPONENTS BD08 Full Profile DIP Switch Specifications:
- Switch Function: SPST - 1 to 12 positions (except 11)
- Contact Rating: 100 mA max. @ 50 V DC; 100 mA @ 5 V DC or 25 mA @ 25 V DC
- Mechanical & Electrical Life: 10,000 cycles
- Contact Resistance: Below 50 milliohms initially
- Insulation Resistance: 10^9 ohms min.
- Dielectric Strength: 500 V RMS between terminals
- Capacitance: 5pF max. between terminals
- Operating Temperature: -40°C to 85°C
- Shock Resistance: 20g, 11 ms waveform
- Vibration Resistance: 0.06 in DA or 5g from 10-55 Hz, 10g from 55-500 Hz
- Solderability: MIL-STD-202F, EIA RS-186E compliant
- Materials: Case & Cover—Glass-filled polyester; Actuator—Nylon 6/6; Contacts—Gold over nickel over phosphor bronze; Terminals—Matte-tin over nickel over phosphor bronze
- Packaging: Supplied in full-tube quantities; switch positions in 'OFF' standard, with open base washable design
Buy the Ck Switches Series BD: Standard Profile DIP Switch BD08
Discover the versatile and dependable full-profile DIP switches from the BD Series, ideal for industrial, computer, and control applications. Designed with open base construction for easy washing and cleaning, these switches offer excellent durability, high contact resistance reliability, and a temperature range from -40°C to 85°C. Constructed with flame-retardant materials, they withstand shock and vibration, making them perfect for harsh environments. Order online today to enhance your control systems with quality switches that guarantee performance and ease of use.
Order your Ck Switches Series BD BD08 full-profile DIP switch today and ensure reliable, easy-to-operate control for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy C&K COMPONENTS BD08?
You can click on the BUY or RFQ button to purchase BD08 from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part BD08?
You can download the BD08 datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of BD08?
C&K COMPONENTS
