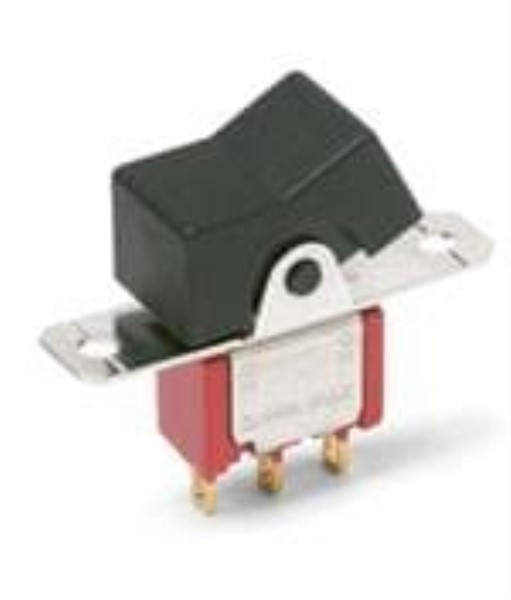

C&K COMPONENTS 7101J90ZGE3 Miniature Rocker Switch
The C&K Components 7101J90ZGE3 is a miniature rocker switch designed for versatility and reliability in a compact form factor. It offers multi-pole and multi-position configurations, catering to diverse circuit requirements. The switch's epoxy terminal seal ensures compatibility with bottom wash cleaning processes, making it suitable for automated manufacturing environments. With a wide range of actuator and termination options, the 7101J90ZGE3 can be customized to meet specific application needs. Its RoHS compliance aligns with environmental regulations, making it a sustainable choice for various industries, including telecommunications, instrumentation, and medical equipment.
C&K COMPONENTS 7101J90ZGE3 Miniature Rocker Switch Specifications:
- Contact Rating: B contact material: 0.4 VA max. @ 20 V AC or DC max. Q contact material: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles.
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min.
- Dielectric Strength: 1000 Vrms min. @ sea level.
- Operating Temperature: –30ºC to 85ºC
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Case Material: Glass filled nylon 6/6, flame retardant, heat stabilized, or diallyl phthalate (DAP) (UL 94V-0)
- Actuator Material: Nylon, black
- Frame Material (Front Mount): Nylon, black
- Frame Material (Rear Mount): Spring steel, black
- Bushing Material: Brass or zinc, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass or steel, matte-tin plated
- End Contact Material: Copper alloy, with gold plate over nickel plate
- Center Contact Material: Copper alloy, silver plated
- Terminal Seal Material: Epoxy
- Hardware Material: Mounting nuts & screws: Brass. Lockwasher: Stainless steel. Standoff: Nylon
