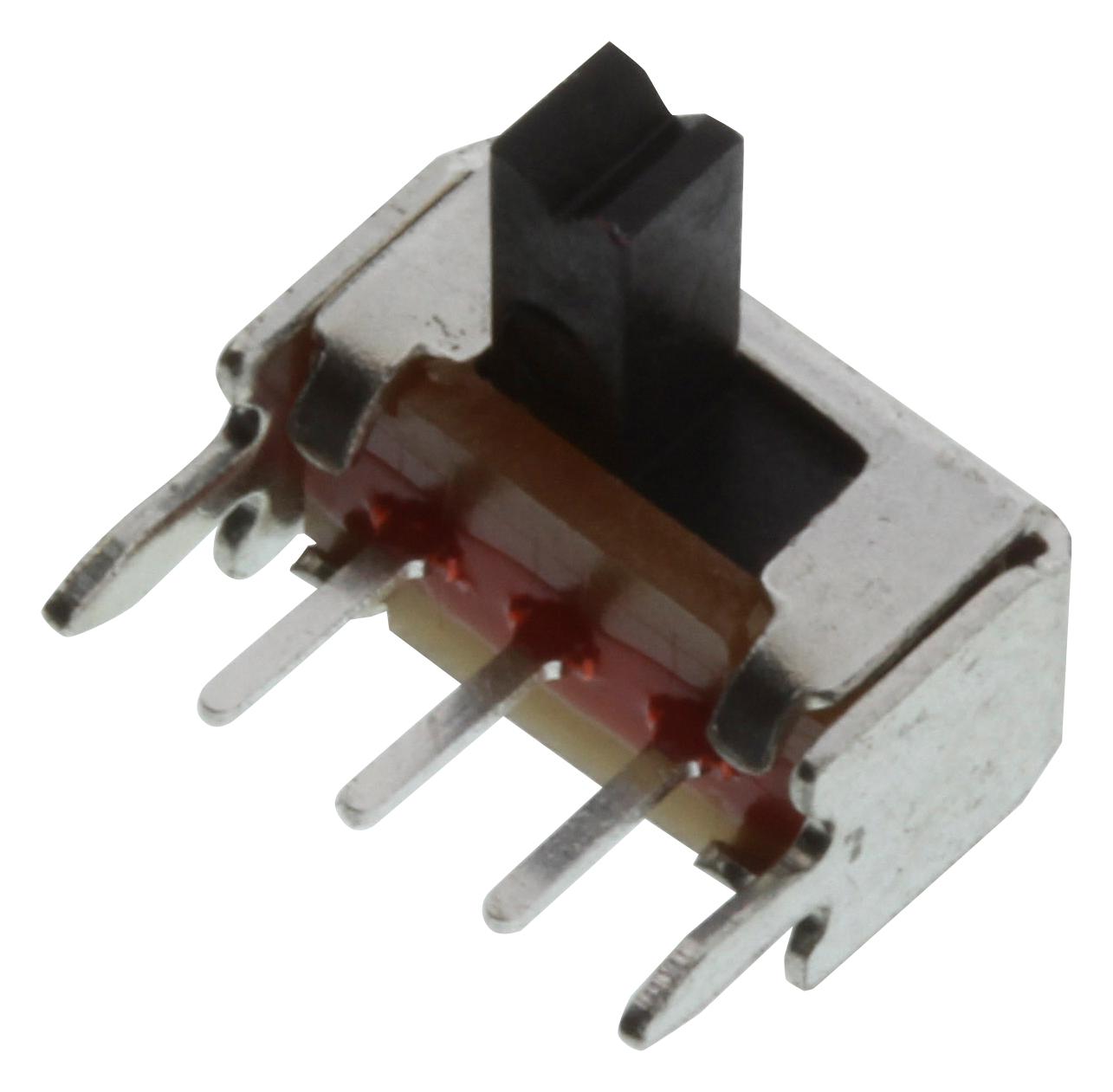

C&K COMPONENTS OS102011MA1QN1C Miniature Slide Switch
The OS Series Miniature Slide Switches are compact, reliable switches designed for various electronic and industrial applications. They feature a variety of actuator and terminal options, including non-shorting and shorting contacts, suitable for test equipment, consumer products, and network devices. Made with phenolic resin bases, POM or PA46 actuators, and nickel-plated brass or copper alloy contacts, these switches support ratings up to 0.38 A at 30 VDC. They are RoHS compliant, halogen-free, with a mechanical life of 10,000 cycles, and operate effectively within -30°C to +70°C, ensuring durability and high performance.
C&K COMPONENTS OS102011MA1QN1C Miniature Slide Switch Specifications:
- Contact Rating: 0.1A to 0.38A @ 12-30 VDC
- Mechanical & Electrical Life: 10,000 cycles
- Contact Resistance: 20 mΩ or less
- Insulation Resistance: 100 MΩ min. at 500 VDC
- Dielectric Strength: 500 VAC for 1 minute
- Movable Contact: Copper alloy, silver plated
- Stationary Contacts: Brass, silver plated
- Operating Temperature: -30°C to +70°C
- Materials: Base phenolic resin, actuator POM or PA46, terminal brass or copper alloy
- RoHS compliant, Halogen free, Sealed terminals
Buy the OS Series Miniature Slide Switches – Reliable Switches for Industrial Applications
Purchase OS Series miniature slide switches online today and benefit from high-quality construction, long-lasting durability, and versatile switching options suited for industrial and consumer electronics. With RoHS compliance, sealed terminals, and ratings up to 0.38 A at 30 VDC, these switches are perfect for test equipment, network products, and control panels. Quick ordering ensures you get reliable, industrial-grade switches with excellent resistance to temperature extremes and high cycle life, enhancing your project’s performance and longevity with ease of online procurement.
Buy OS Series miniature slide switches now and ensure reliable performance with durable materials, robust cycling life, and versatile configurations for various applications.
Frequently Asked Questions
Where can I buy C&K COMPONENTS OS102011MA1QN1C?
You can click on the BUY or RFQ button to purchase OS102011MA1QN1C from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part OS102011MA1QN1C?
You can download the OS102011MA1QN1C datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of OS102011MA1QN1C?
C&K COMPONENTS
