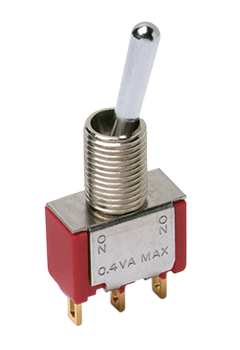

C&K COMPONENTS 7101P3CWAV2ME Miniature Toggle Switch
The C&K Components 7101P3CWAV2ME is a miniature toggle switch designed for versatility and reliability in various industrial applications. This switch boasts a compact design and offers a broad selection of actuator and termination options to meet specific requirements. Its epoxy terminal-seal ensures compatibility with bottom wash cleaning processes, enhancing its suitability for automated manufacturing environments. Available in RoHS compliant models, it aligns with environmental regulations. Typical applications include telecommunications equipment, instrumentation, and medical devices, where its compact size and robust performance are highly valued.
C&K COMPONENTS 7101P3CWAV2ME Miniature Toggle Switch Specifications:
- Dielectric Strength: 1000 Vrms min. @ sea level
- Operating Temperature: -30ºC to 85ºC
- Contact Rating B: 0.4 VA max. @ 20 V AC or DC max
- Contact Rating Q: 5 AMPS @ 120 V AC or 28 V DC; 2 AMPS @ 250 V AC
- Electrical Life: 7X01 and UX1 models: 100,000 make-and-break cycles at full load. All other models: 40,000 cycles
- Solderability: Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
- Contact Resistance: Below 10 m Ω typ. initial @ 2-4 V DC, 100 mA
- Insulation Resistance: 10[9] Ω min
Buy the 7101P3CWAV2ME C&K COMPONENTS Miniature Toggle Switch | myMectronic
Purchase the C&K Components 7101P3CWAV2ME Miniature Toggle Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy C&K COMPONENTS 7101P3CWAV2ME?
You can click on the BUY or RFQ button to purchase 7101P3CWAV2ME from an authorized C&K COMPONENTS distributor.
How do I troubleshoot issues or seek technical support for part 7101P3CWAV2ME?
You can download the 7101P3CWAV2ME datasheet or visit the C&K COMPONENTS website for support.
Who is the manufacturer of 7101P3CWAV2ME?
C&K COMPONENTS
